Features
- For measuring gears and paper thickness
- Grey painted steel frame
- Ratchet stop
- Inch/Metric conversion
- Automatic on/off
- Absolute or incremental measuring modes
- With S-Wrench, Warranty Card, Instruction Manual, Calibration Certificate
Product Specifications
| Manufacturer Part Number | 7145041 |
| Operation Type | Electronic |
| Minimum Measurement (Inch) | 3" |
| Minimum Measurement (mm) | 75mm |
| Maximum Measurement (Inch) | 4" |
| Maximum Measurement (mm) | 100mm |
| Thimble Type | Ratchet Stop |
| Digit Counter | No |
| Resolution (mm) | 0.001mm |
| Resolution (Decimal Inch) | 0.00005" |
| Water Resistance Rating | None |
| Disc Diameter (mm) | 20mm |
| Rotating Spindle | No |
| Anvil Type | Flat Disc |
| Graduation (Decimal Inch) | 0.0001" |
| Accuracy (Decimal Inch) | ±0.0002" |
| Includes | 3" Standard |

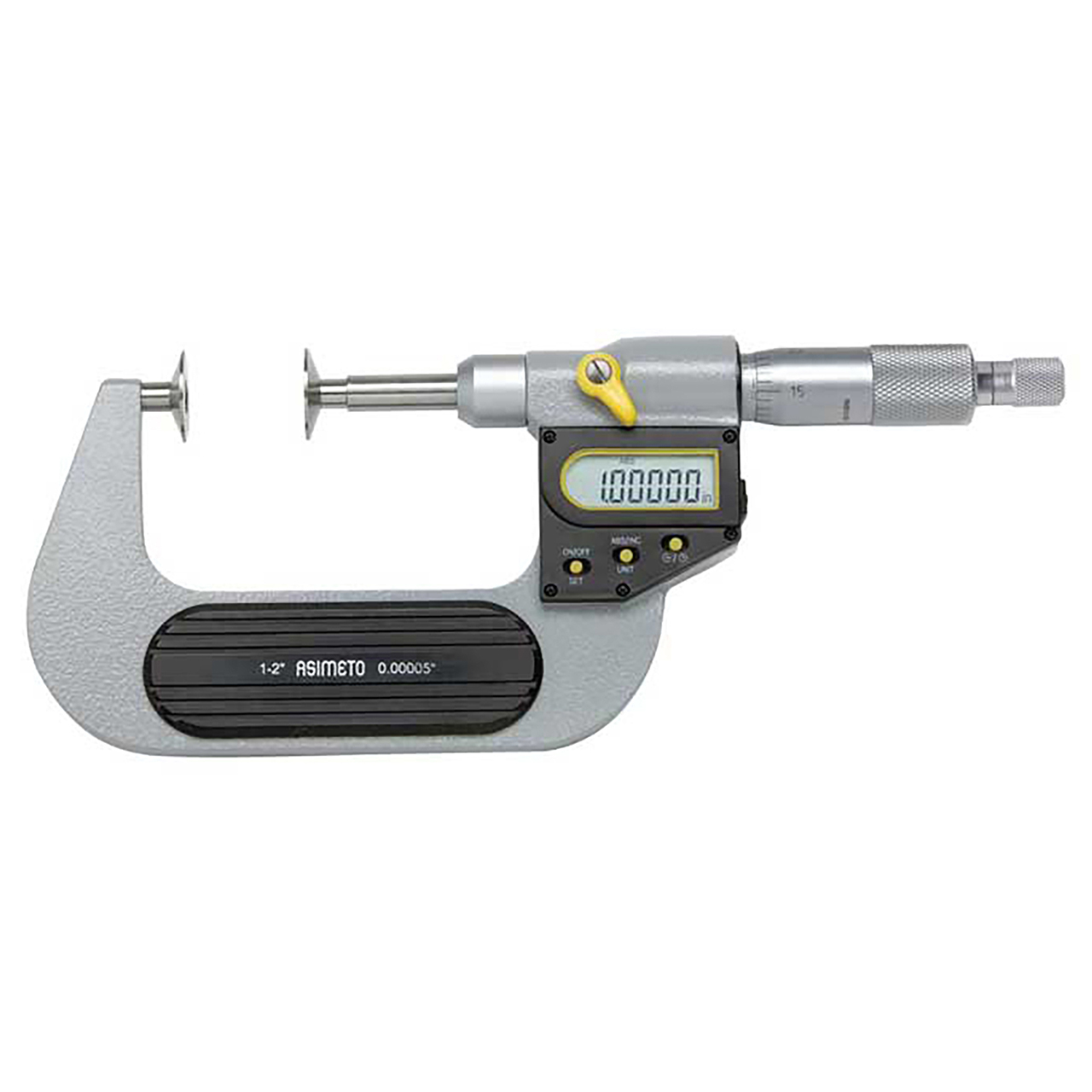

| Product Type | Digital Disc Micro Meter |
