Features
- Stainless Steel construction with all measuring surfaces surface-hardened
- Preloaded dual pinions eliminate backlash and provide better repeatability
- Thumb roller included
- It includes Warranty card, Instruction manual
Product Specifications
| Manufacturer Part Number | 7303121 |
| Maximum Measurement (Inch) | 12" |
| Dial Graduation (Decimal Inch) | 0.001" |
| Jaw Length (Inch) | 3/4" |
| Range Per Revolution (Decimal Inch) | 0.1" |
| Dial Face Color | Yellow |
| Material | Stainless Steel |
| Accuracy (Decimal Inch) | 0.0015" |
| Minimum Measurement (Inch) | 0" |
| Includes Depth Measurement Rod | Yes |
| Includes Inside Diameter Jaws | Yes |

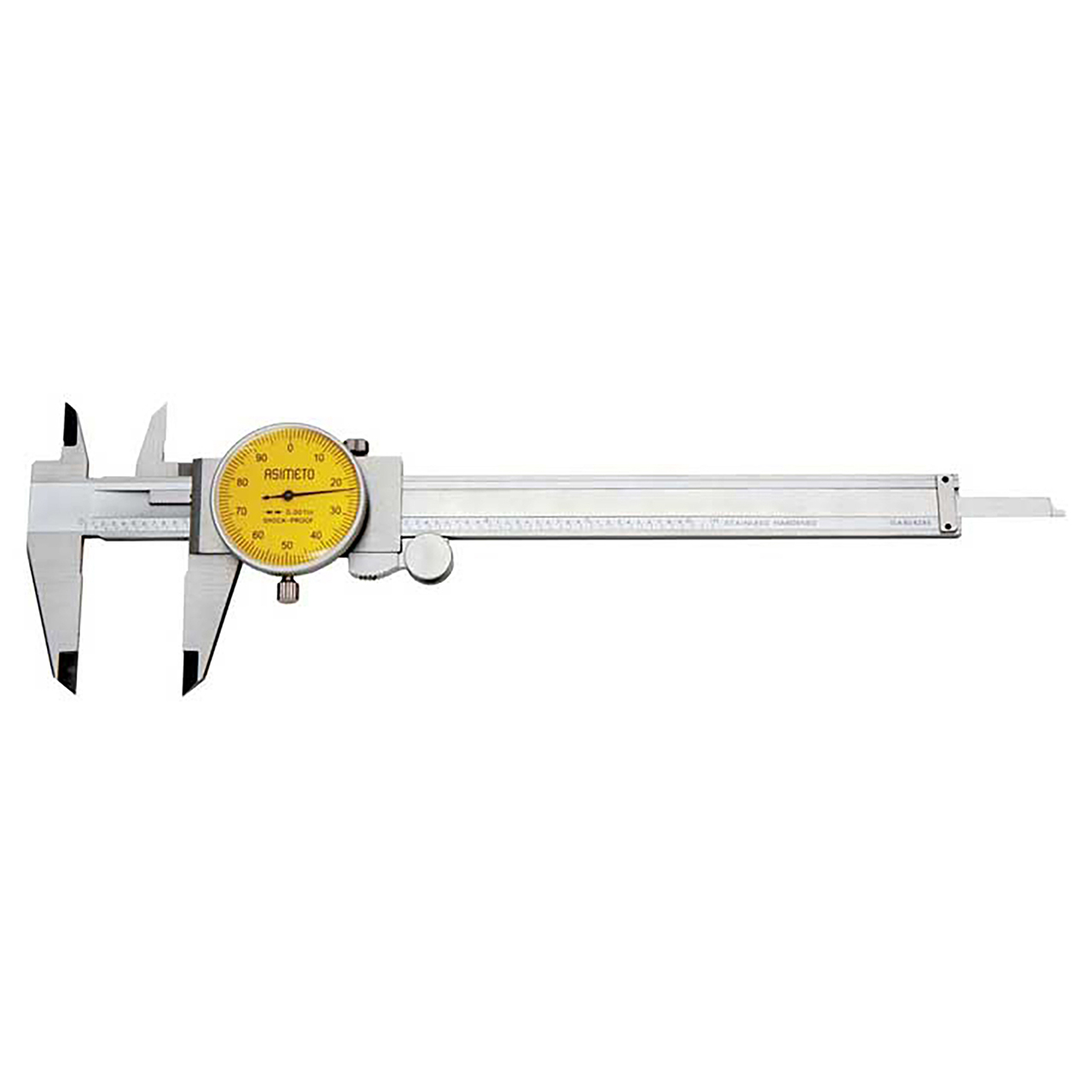

| Product Type | Dial Caliper |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Asimeto
Maximum Measurement (Inch):
12"
Maximum Measurement (Decimal Inch):
12.0000"
Maximum Measurement (mm):
304.80mm
Dial Graduation (Decimal Inch):
0.0010"
Accuracy (Decimal Inch):
0.0015"
Jaw Length (Inch):
3/4"
Jaw Length (Decimal Inch):
0.7500"
Jaw Length (mm):
19.05mm
Range Per Revolution (Inch):
3/32"
Range Per Revolution (Decimal Inch):
0.1000"
Range Per Revolution (mm):
2.54mm
Dial Color:
Yellow
Material:
Stainless Steel
interval quantity:
1
