Product Specifications

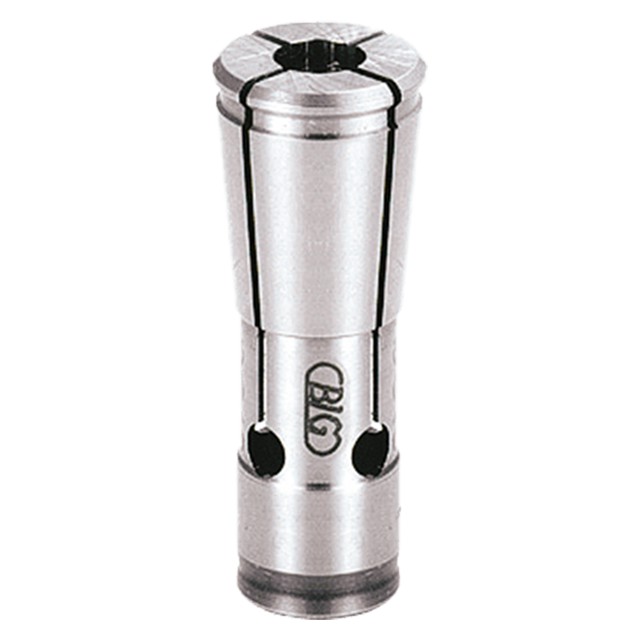

| Catalog Number | NBC8S-4.9AA |
| Length (mm) | 27.00mm |
| Nominal Clamping Size (mm) | 4.90mm |
| Straight Collet Clamping OD (mm) | 12.00mm |
| Minimum Clamping Range (Inch) | 0.1910" |
| Minimum Clamping Range (mm) | 4.85mm |
| Maximum Clamping Range (Inch) | 0.1950" |
| Maximum Clamping Range (mm) | 4.95mm |
| Collet Series | NBC8S |
| Sealed Coolant Capability | No |
| Jet Coolant Capability | No |
| Tapping Capability | No |
| Product Type | Micro Collet |
