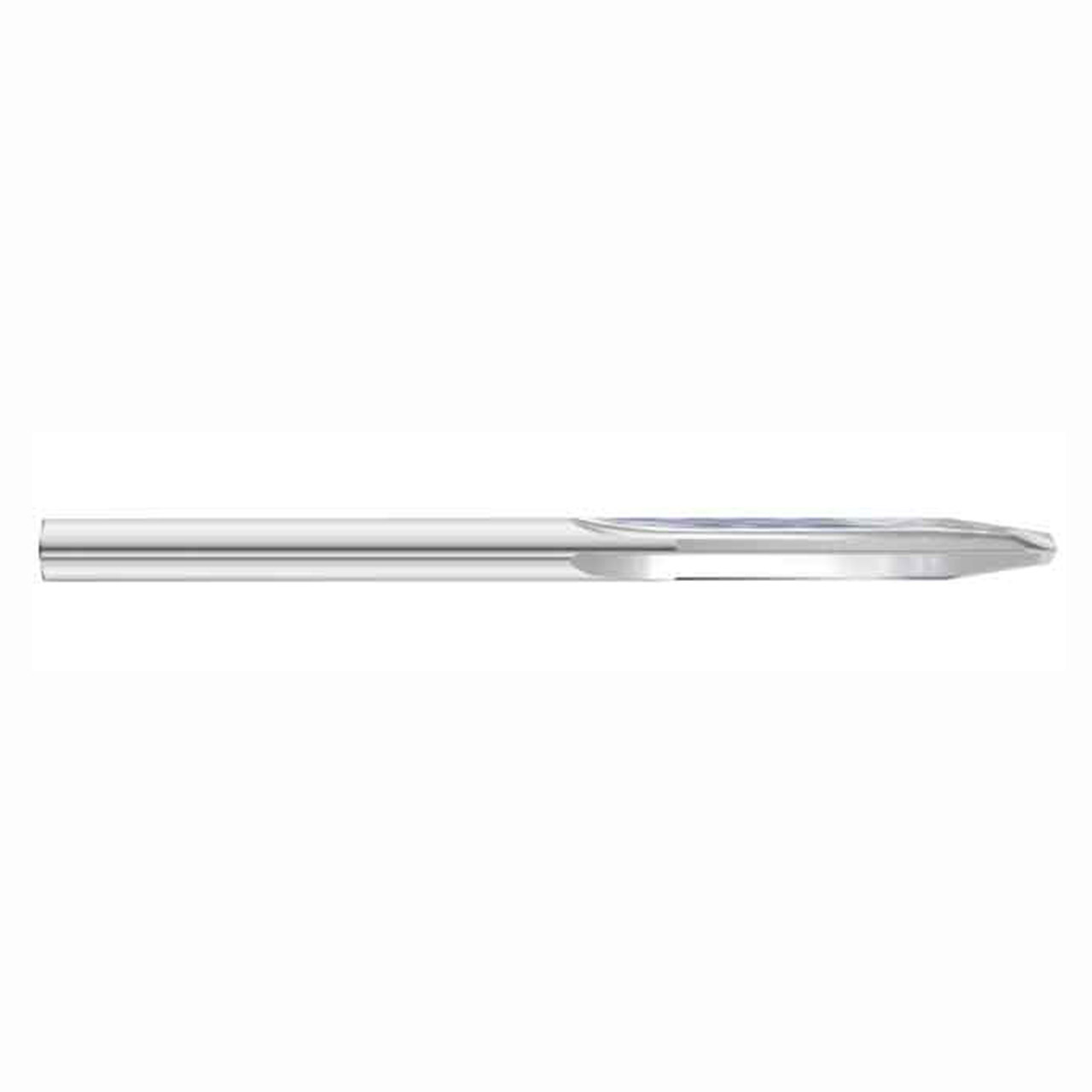

The Carbro 4" Drill Reamer is a 4" length tapered drill reamer, its elongated double-angle geometry eliminates thrust and exit side delamination. This tool can be used for hand drilling, robot, or CNC and excels in fiberglass, CFRP, CFRP/Nomex, GFRP/Nomex, CFRP/Al, Al, Al/Al, Carbon/Carbon, and graphite. The Carbro 4" Drill Reamer has 4-flutes and 118 degree point. Get started with the Carbro 4" Drill Reamer today!
Features:
- Carbro’s 4" Drill Reamer eliminates thrust and exit side delamination in composites
Product Specifications
| # Manufacturer Number | DR-2031-4 |
| Cutting Diameter (Inch) | 0.2031" |
| Cutting Diameter (mm) | 5.16mm |
| Cutting Diameter (Fractional Inch) | 13/64" |
| Flute Length (Inch) | 1.7500" |
| Flute Length (mm) | 44.45mm |
| Flute Length (Fractional Inch) | 1-3/4" |
| Overall Length (mm) | 101.6mm |
| Overall Length (Fractional Inch) | 4" |
| Point Angle (Degree) | 118 Degree |
| Number of Flutes | 4 |
| Series | 8214 |
| Spiral Direction | Right Hand |
| Cutting Direction | Right Hand |
| Product Type | Drill Reamer |
