25000 Series
The collar screws into the air-feed drill's nosepiece, precisely aligns the shank, and locks the drill in place when rotated 30° counterclockwise after insertion in the liner.
Application Information

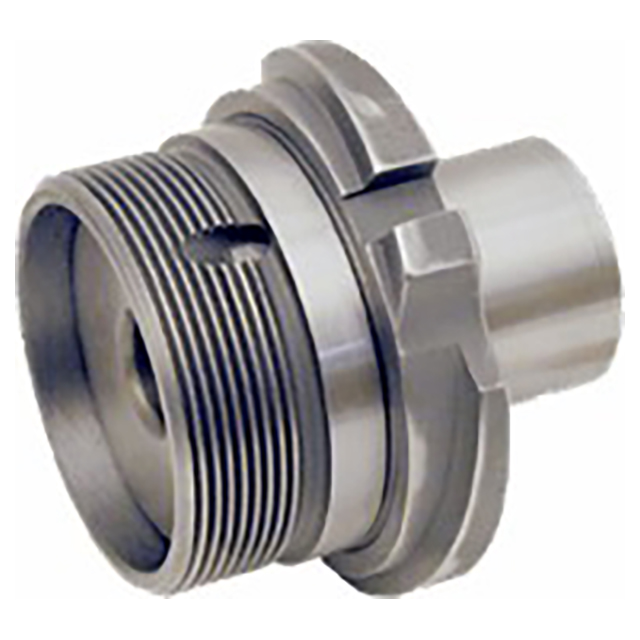

Adaptor-Tip Assemblies are two-piece drill bushings that consist of a precision Shank press-fitted into a threaded Collar.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1144 Stressproof Steel | Heat treated to achieve Rc 62-64 ID hardness | - | ✔ | ✔ |
Parts Specification
| Shank OD (Inch) |
| 1-1/4, 1-3/8, 1-1/2, 1-3/4, 2" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
