Lock Liners-Press Fit

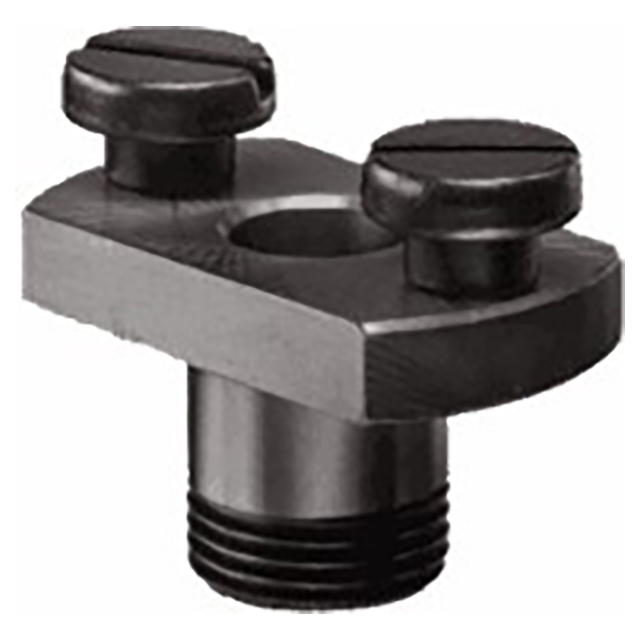

Precision liner bushing for mounting air-feed drills through a jig plate. The large head holds two standard Lockscrews, to lock the drill motor in place. Milled flats allow close hole spacing. Press fit into jig plate, then fasten from behind with a Lock Nut.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1144 Stressproof Steel | Heat treated to achieve Rc 62-64 ID hardness | - | ✔ | ✔ |
Parts Specification
| A Diameter (Inch) | B Diameter (Inch) | C (Inch) | D (Inch) | F Diameter (Inch) | G (Inch) | H (Inch) | L (Inch) | L.h. Thread (Inch) |
| 0.3750/.3756" | 0.4995/.4990" | 7/16" | 3/4" | 1-3/4" | 5/8" | 3/4" | 1-1/16" | 1/2-20" |
