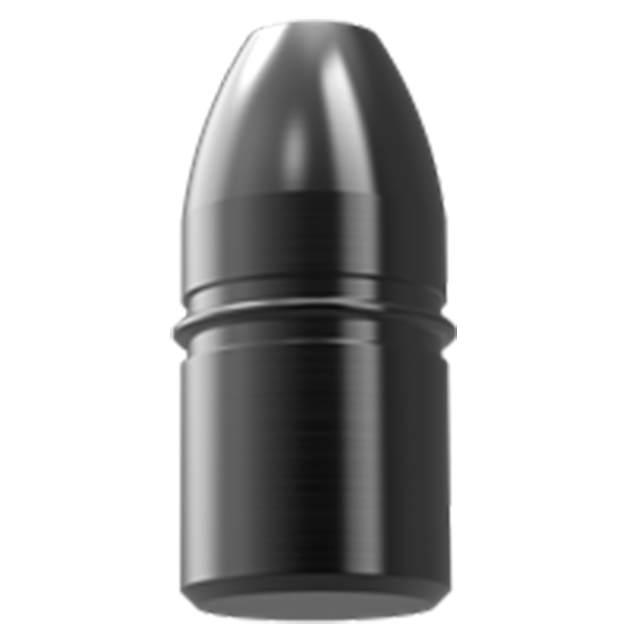

Bullet-Nose Dowels
Precision locating pin often used with a mating bushing to align two pieces of a fixture. The pin's head and shank diameters are concentric to within .0005" TIR. Made in USA.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1144 Steel | Heat Treated Rc 50-55 | Black Oxide | Yes | Yes |
Parts Specification
| A Head Diameter Nominal (Inch) | A Head Diameter Actual (Inch) | B Shank Diameter Nominal (Inch) | B Shank Diameter Actual (Inch) | C Diameter (Inch) | D (Inch) | E (Inch) | F (Inch) | G Diameter (Inch) |
| 1/4" | 0.2499" | 1/4" | 0.2510" | 0.280" | 1/2" | 0.12" | 0.90" | 1/8" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Shank Diameter (mm):
6.35mm
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (Inch):
1/4"
Diameter (Inch):
1/4"
Diameter (Decimal Inch):
0.2500"
Diameter (mm):
6.35mm
