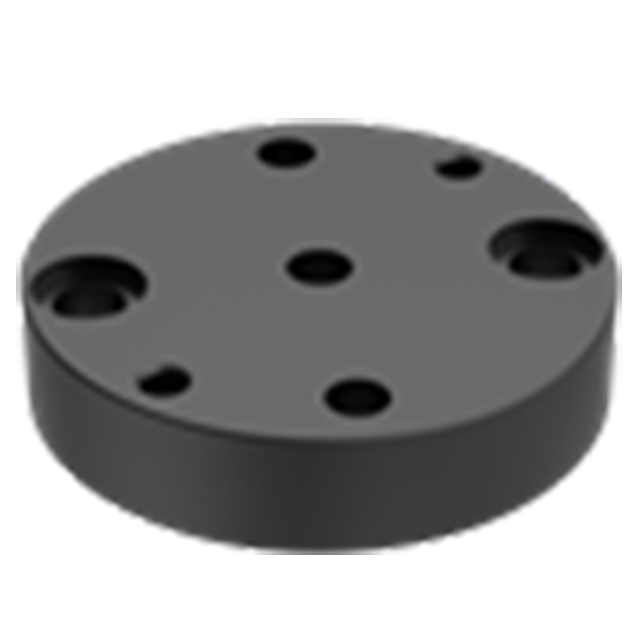

Reversible Construction Ball Pad Inch
Reversible round pad for mounting a Construction Ball. These round pads should be fastened with two ultra-low-profile socket-head cap screws, then doweled in place to maintain accurate location. The Construction Ball can be secured by installing a #10-32 setscrew (not furnished) in the crosshole. Made in USA.
Application Information
Material
| Stainless Steel | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| 17-4PH Stainless Steel | - | Passivated | Yes | Yes | |
Parts Specification
| A Diameter Nominal (Inch) | A Diameter Actual (Inch) |
| 1/4" | 0.2500" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
1/4"
Diameter (Decimal Inch):
0.2500"
Diameter (mm):
6.35mm
interval quantity:
1
