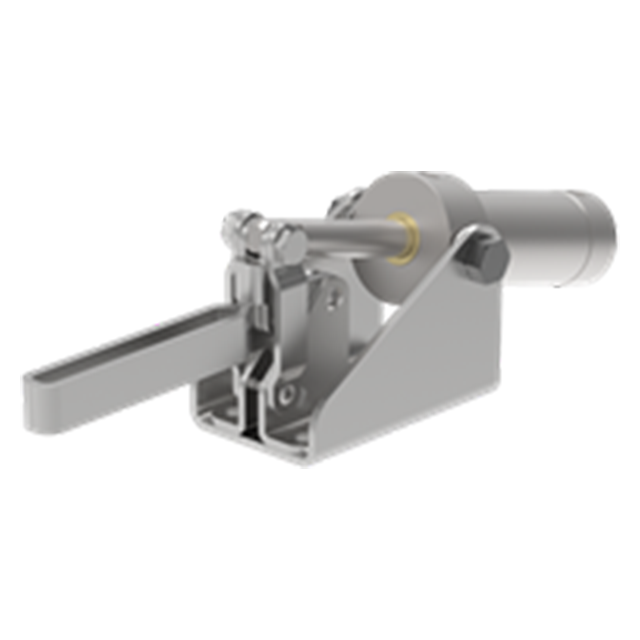

Carr Lane CL-1000-PTC | 500 lbs. Holding Capacity Air-Powered Toggle Clamp

Air-Powered Toggle Clamps

CL-1000-PTC
Open Arm

Popular medium-size air clamp. Similar to a wide-opening vertical-handle toggle clamp, except operated by an air cylinder instead of by hand. Toggle linkage provides high holding capacity and insures positive mechanical locking even if air pressure fails. Clamping arm opens 92°. Choose either an open arm for adjustable spindle location, or a solid arm for fixed spindle location. 500 lbs. holding capacity. Made in USA.

This clamp is operated by a 1-1/4"-bore double-acting air cylinder, with Buna-N seals for -20° to +200°F operating temperature. Two 1/8-NPT ports. 100-psi maximum input air pressure exerts 390 lbs. maximum clamping force at center of arm.

Optional Position Sensing

Open Arm, with Position Sensing

Solid Arm, with Position Sensing

These clamps are optionally available with position-sensing capability, incorporating a special air cylinder with a magnetic piston ring. This allows monitoring cylinder position with either a Hall-effect switch or reed switch.

Accessories

Open-arm version accepts any 5/16-18 or M8 short spindle and flanged washers. Solid-arm version accepts any 5/16-18 short spindle and bolt retainer.

Material

Parts Specification
