Carr Lane CL-1032-TSKS | 0.31" Length Thinwall Key Insert

$3.93
Ships:
From Manufacturer
Brand:
Carr Lane
Ships:
From Manufacturer
SKU:
70024427
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

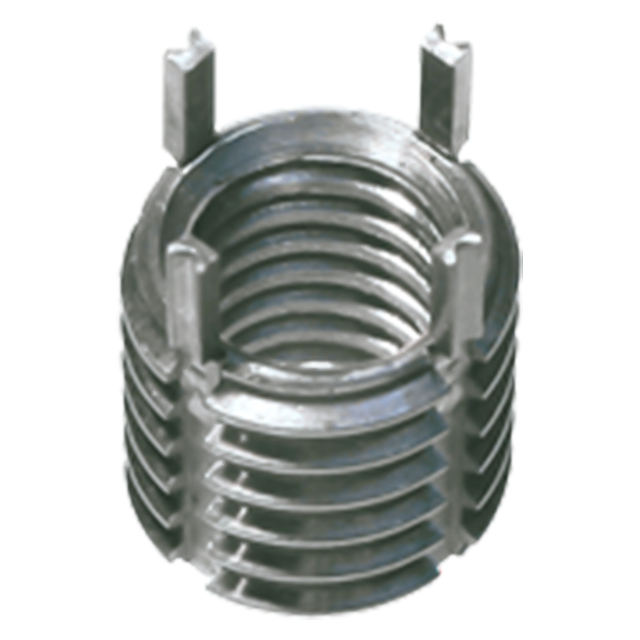

Key Inserts-Thinwall, Stainless Steel

Thinwall Key Inserts have a smaller OD thread size than standard heavy-duty inserts, ideal for tight spaces where less pull-out strength is acceptable. Key Inserts are ideal for thread reinforcement, especially when the mating stud or bolt will be removed frequently. These stainless inserts provide strong, permanent stainless steel threads in any parent material, ferrous, non-ferrous, or non-metallic. Key Inserts are also well suited for quick repair of stripped, damaged, or worn threads. Locking keys positively prevent the insert from rotating.

Application Information

Material

ItemMaterialHeat TreatFinishRoHS
Body303 Stainless Steel--
Keys302 Stainless Steel--

Parts Specification

Internal ThreadExternal Thread(inch)Length (inch)Shear Engagement Area (sq In.)
#10-325/16-18"0.31"0.152 sq in.

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
