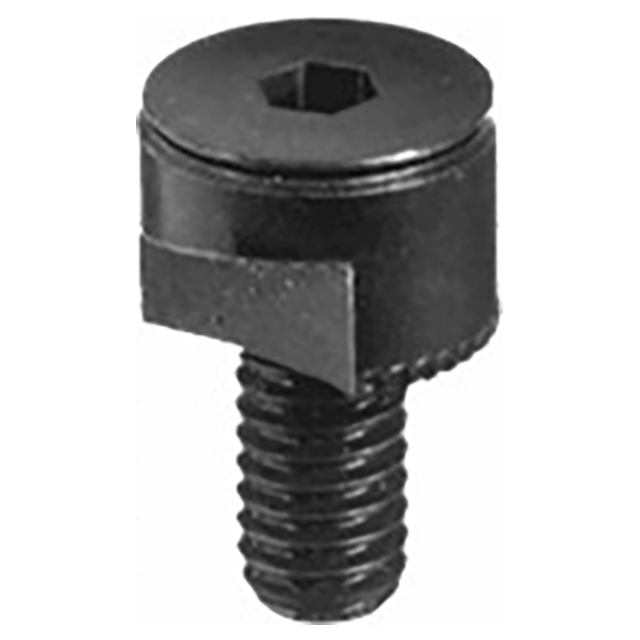

Taper-Lok Air-Feed Lockscrews
Two-piece Lockscrew, specially designed for air-feed drilling. Angled locking surface mates perfectly with an air-feed collar. Use instead of a standard Lockscrew for greater strength, to eliminate worn, bent, or broken screws. Install two Air-Feed Lockscrews and a liner directly in the jig plate. Serrations at the bottom bite into the jig plate to positively prevent rotation under heavy torque loads. Alloy steel mounting screw furnished.
Application Information
Taper-Lok Air-Feed Lockscrews with Liner
Material
| ITEM | Material | Heat Treat | Finish |
| Body | 4140 steel | - | Black Oxide |
| Flat-Head Socket Screw | Alloy Steel | - | Black Oxide |
Parts Specification
| Mounting Screw Diameter (Inch) | Mounting Screw | A Diameter (Inch) | B Diameter (Inch) | C (Inch) | D (Inch) | E (Inch) |
| 5/16" | 5/16-18x2.00 w/Jam Nut | 5/8" | 19/32" | 3/16" | 1-19/32" | 1-1/4" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
