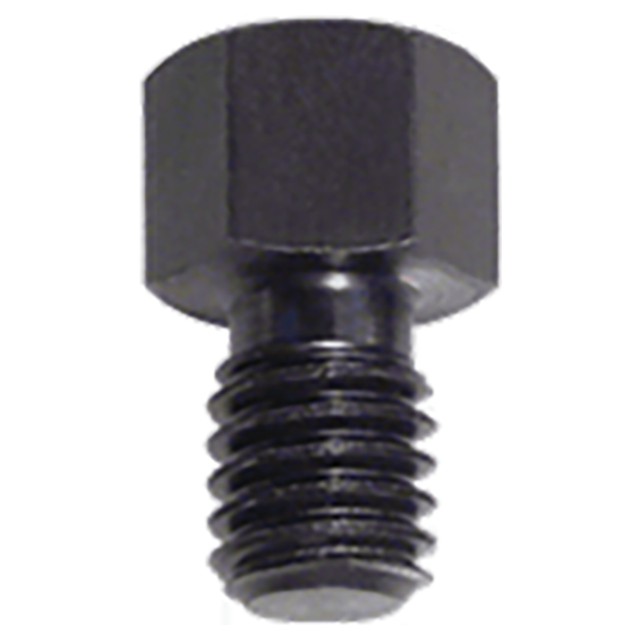

Screw Rest Buttons
Threaded rest button with a hex head machined .005 to .010" over nominal height for finish grinding after installation. Screw Rest Buttons are useful as supports and jig feet. Made in USA.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1215 Steel | carburized-hardened .015 to .020" deep | Black Oxide | Yes | Yes |
Parts Specification
| A (Inch) | B (Inch) | C Nominal (Inch) | C Actual (Inch) | D Thread (Inch) |
| 5/8" | 5/8" | 3/4" | 0.7500" | 1/2-13" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
