Carr Lane CL-15-THA-OP | 1/2-13 Size Tapped-Heel Clamp Strap

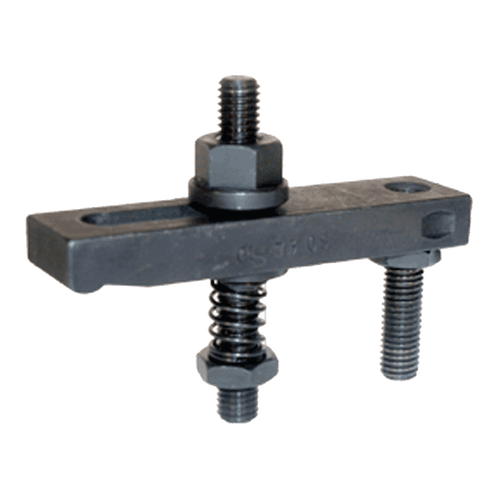

Tapped-Heel Clamp Strap Assembly

Heavy-duty steel version of the Tapped-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut. An indentation at the rear of each side provides a secure finger grip for retracting the clamp.

Application Information

Tapped-Heel Clamp Straps have a tapped hole that accepts either a clamping screw.

Assembly with Clamp Rest (-OP)

This assembly includes a Tapped-Heel Clamp Strap plus the following Items:

• Oval-Point Clamp Rest
• Spherical Nut & Washer
• Clamping Stud
• Clamp Spring
• Flat Washer
• Jam Nuts (2)

Material

Parts Specification
