Rotational Molding Latch Clamp

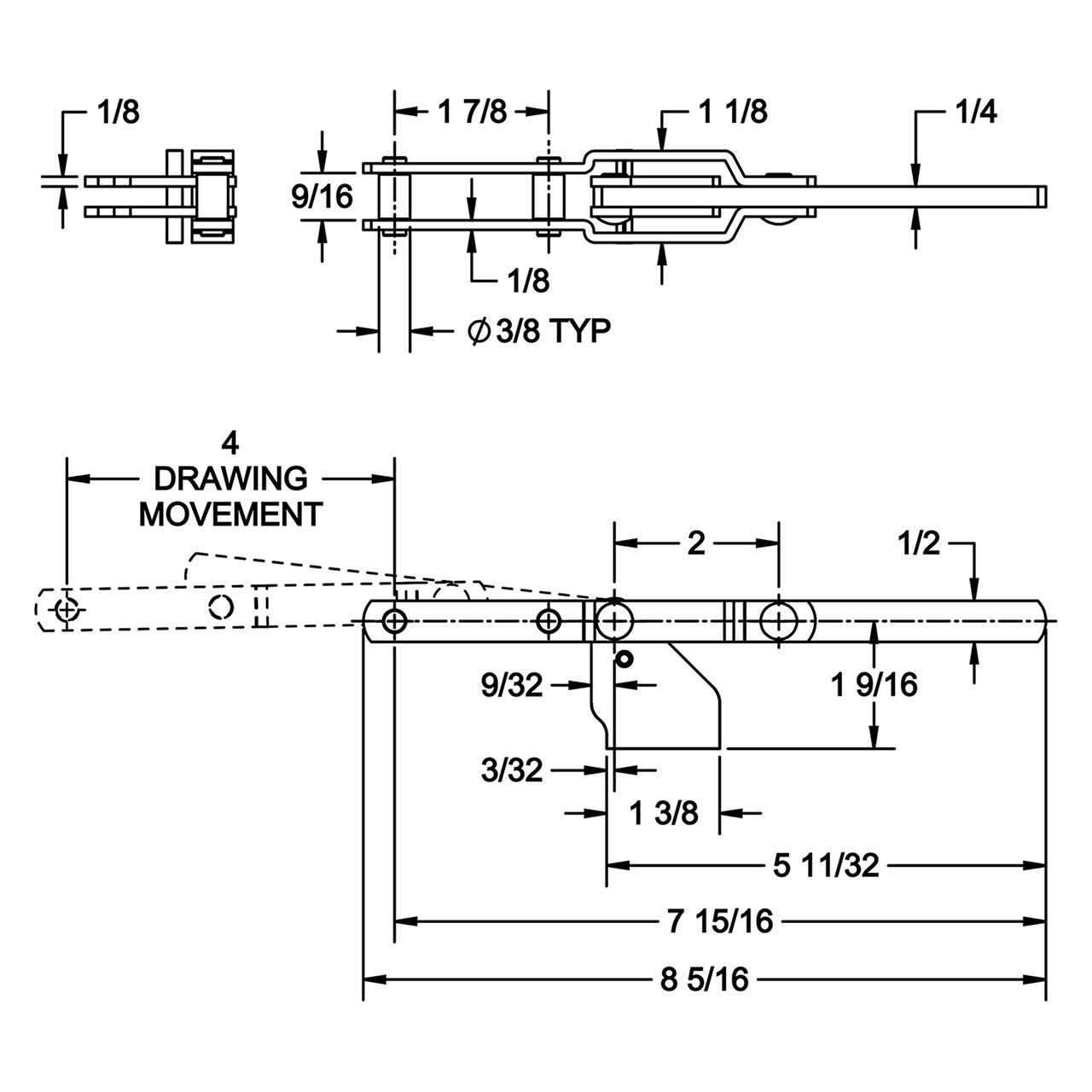

Latch clamp with a fixed reach for installation where no length adjustment is required. Frequently used in Rotational Plastic Molding this clamp is made from Stainless Steel to better resist deformation, damage, and extend the life of the clamp in High-Temperature environments. 4" drawing movement.375 lbs. holding capacity.
Material
| Item | Material | Heat Treat | Finish |
| Clamp Body | 300-Series Stainless | - | - |
| Rivets | 400-Series Stainless | - | - |
| Handle | Vinyl | - | - |
Parts Specification
| Description | Holdingcapacity(lbs.) | Shippingweight(lbs.) |
| STRAIGHT BASE | 375lbs. | 0.8lbs. |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Holding Capacity:
375 lbs.
Ships:
From Manufacturer
