Angle Brackets with Locating Holes

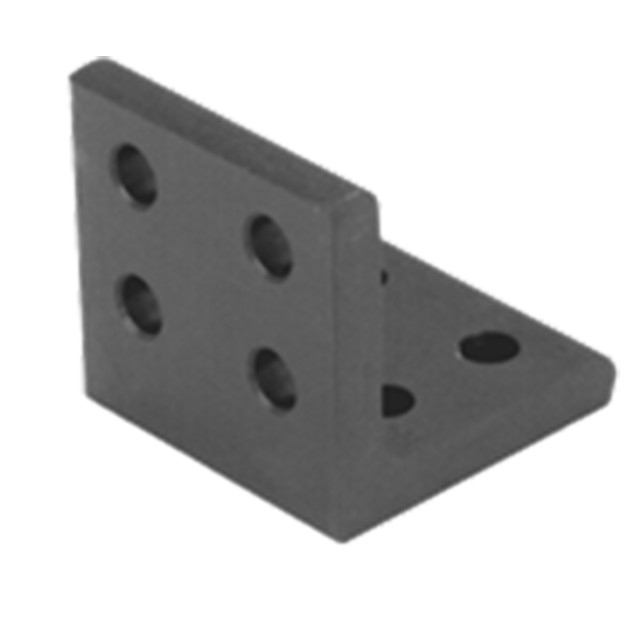

Extremely accurate angle brackets with precision locating holes. These angles are ideal for bolting together like an erector set to create large-scale tooling. Ideal for assembly and welding fixtures.The 90 Degree angle and eight locating holes are held to close tolerances to maintain good accuracy in built up tooling. Made in USA.
Application Information
Angle-Bracket Locating Bolts
Fasten with Angle-Bracket Locating Bolts and Hex Nuts.
These precision bolts are required to accurately fasten angle brackets to each other, and to other tooling. The ground locating diameter provides a slight press fit when angles are bolted together.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Angle Brackets | ASTM A36 Steel | - | Black Oxide | ✔ | ✔ |
| Locating Bolts | Steel | - | - | ✔ | ✔ |
Parts Specification
| A (Inch) | B (Inch) | C (Inch) | D (Inch) | E (Inch) | F (Inch) | G (Inch) | H (Inch) | J (Inch) |
| 3" | 3" | 1/2" | 3/8" | 3" | 2.000" | 1.250" | 1.250" | 1.125" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
