Tapped-Heel Padded Clamp Strap Assembly
Tapped-Heel Clamp Strap that features a replaceable clamping pad attached with two screws (furnished). Padded clamp straps also easily accept custom pads or other attachments. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut. The tapped hole at the rear of each side allows installing a Finger Pin. Available to fit stud sizes 1/4-20 to 1/2-13, most in a choice of strap lengths. Made in USA.
Application Information
Tapped-Heel Clamp Straps have a tapped hole that accepts either a clamping screw for use with a slotted guide block, as shown here, or an adjustable rear support.

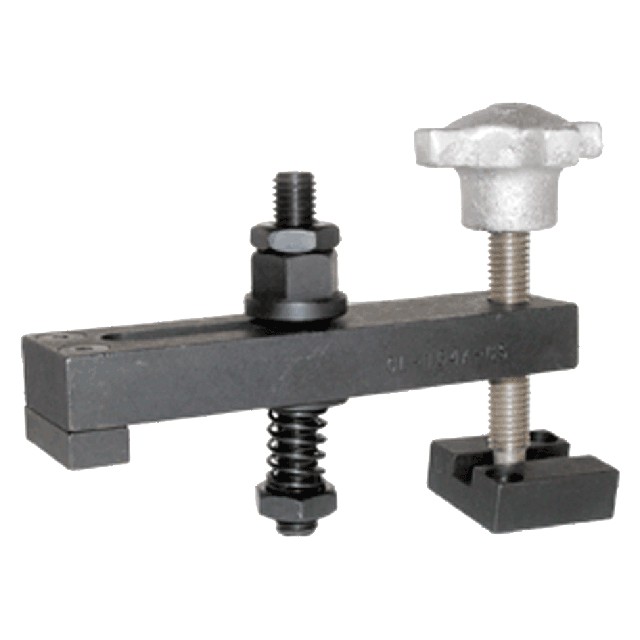

Assembly with Hand-Knob Clamping Screw
This assembly includes a Tapped-Heel Padded Clamp Strap plus the following items: Hand-Knob Clamping Screw, Guide Block, Spherical Nut & Washer, Clamping Stud, Clamp Spring, Flat Washer, Jam Nuts (2)
Material
Item | Material | Heat Treat | Finish | DFARS | RoHS |
Clamp Strap | 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
Flat-Head Socket Screws | Steel | - | Black Oxide | Yes | Yes |
Steel Clamping Pad | 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
Plastic Clamping Pad | Plastic | - | - | Yes | Yes |
Brass Clamping Pad | Brass | - | - | Yes | Yes |
Parts Specification
A Thread | D (Inch) | E (Inch) | F (Inch) | T |
3/8-16 | 3-1/2" | 11/16" | 1-1/8" | 1-1/8 |
