Carr Lane CL-1626-01-CLSK | Carr Lock System Kit

Carr Lock System Kit for HAAS VF-1YT

CL-1626-01-CLSKCarr Lock System Kits include everything you need to set up an efficient quick-change fixturing system. The system's foundation is a Carr Lock Subplate-a precision-machined steel plate with Carr Lock Receiver Bushings installed in a standard pattern. Carr Lock System Kits also include one or more Carr Lock Fixture Plates, plus all required Carr Lock Clamps and mounting accessories (Sure-Lock Fixture Keys, T Nuts, Socket-Head Cap Screws, and a Preset Torque Wrench). Made in USA.This System Kit includes (1) 16 x 26 Carr Lock Subplate, (2) Carr Lock Jigsaw Vise Plates, and (6) 20mm Carr Lock Clamps. See Related Products below for detailed information about these plates and all supplied accessories.

Application Information

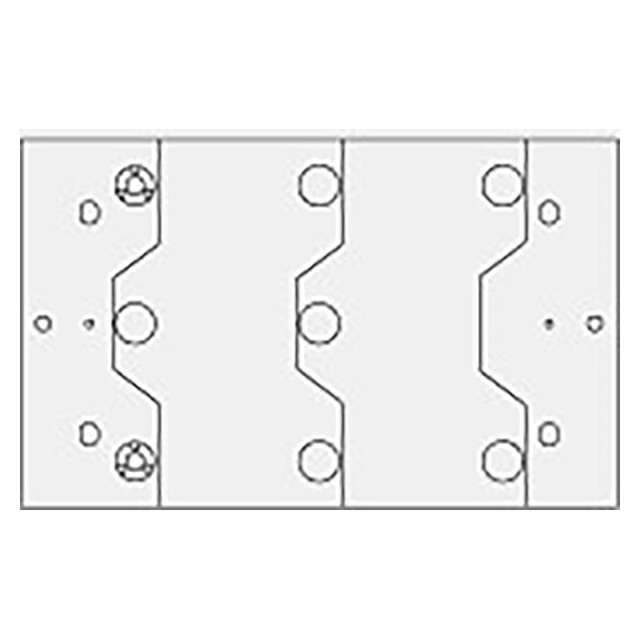

Subplate with (2) Jigsaw Vise Plates

Accuracy

The Carr Lock System is extremely accurate. All Receiver-Bushing installation holes are located +/-.0002" from their primary reference hole. Clamping repeatability is +/-.0005", while bushing concentricity is .0002" TIR. The resulting x/y-axis repeatability of a mounted fixture plate is +/-.0028" considering all tolerance accumulation.

Mounting (Subplate)

Two locating holes for Sure-Lock Fixture Keys are provided for alignment with a slotted machine table. Fasten to the machine using the four, six, or eight mounting slots provided, with Socket-Head Cap Screws and T Nuts to match the machine table.

Mounting (Jigsaw Vise Plate)

To fasten the Carr Lock Jigsaw Vise Plate to a subplate, begin by inserting a Carr Lock Clamp into each of the three mounting holes. Next, fully tighten the clamps one at a time-first the clamp in the primary liner bushing, then the clamp in the secondary liner bushing, then the clamp in the clearance hole.

Design Considerations & Safety Precautions

Never use a subplate that extends beyond the machine table on which it is mounted.

Material

Parts Specification

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
