Carr Lane CL-163A-THPA-LF | 1/2-13 Thread Tapped-Heel Padded Clamp Strap

Tapped-Heel Padded Clamp Strap Assembly

Tapped-Heel Clamp Strap that features a replaceable clamping pad attached with two screws (furnished). Padded clamp straps also easily accept custom pads or other attachments. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut. The tapped hole at the rear of each side allows installing a Finger Pin. Available to fit stud sizes 1/4-20 to 1/2-13, most in a choice of strap lengths. Made in USA.

Application Information

Tapped-Heel Clamp Straps have a tapped hole that accepts either a clamping screw for use with a slotted guide block, as shown here, or an adjustable rear support.

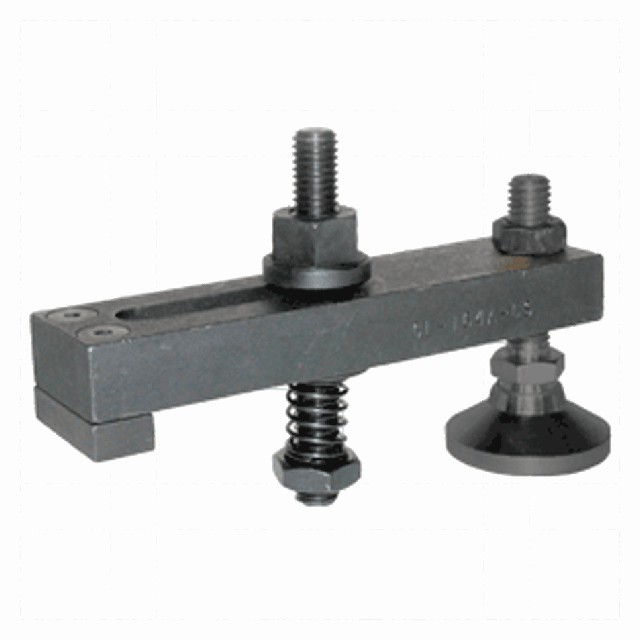

Assembly with Leveling Foot

This assembly includes a Tapped-Heel Padded Clamp Strap plus the following items: Stud Leveling Foot, Spherical Nut & Washer, Clamping Stud, Clamp Spring, Flat Washer, Jam Nut

Material

Parts Specification
