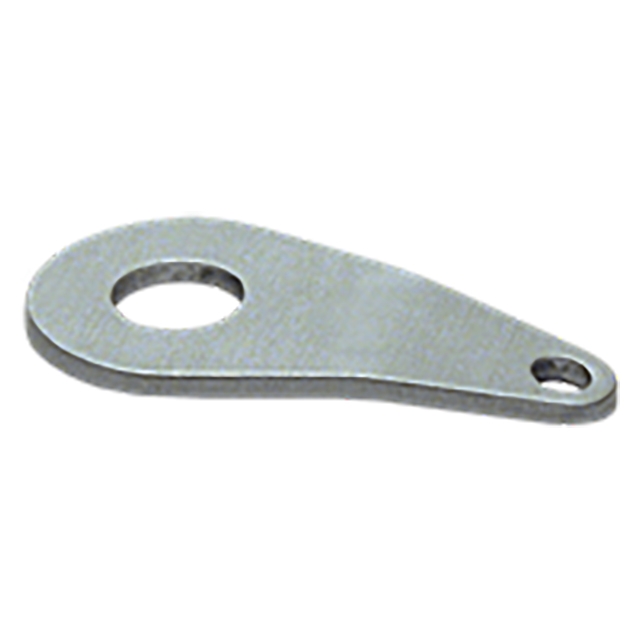

Cable Tabs (Teardrop)
Cable Tabs can be attached to the looped end of the nylon-coated cable to allow fastening that cable end with a screw. These tabs can be used with cable sizes #1, #2, and #3. Choice of two shapes, teardrop and rectangular.
Material
Aluminum: 6061 aluminum alloy, clear anodized. DFARS and RoHS compliant.
Parts Specification
| Fits Cable (Inch) | A Diameter (Inch) | A Screw Size (Inch) | B Diameter (Inch) | C (Inch) | D (Inch) | E (Inch) |
| Sizes 1 to 3" | 0.20" | #10 (or M4) | 0.13" | 0.69" | 1.31" | 0.06" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Decimal Inch):
20.0000"
Diameter (Inch):
20"
Diameter (mm):
508.00mm
