Slotted-Heel Clamp Straps

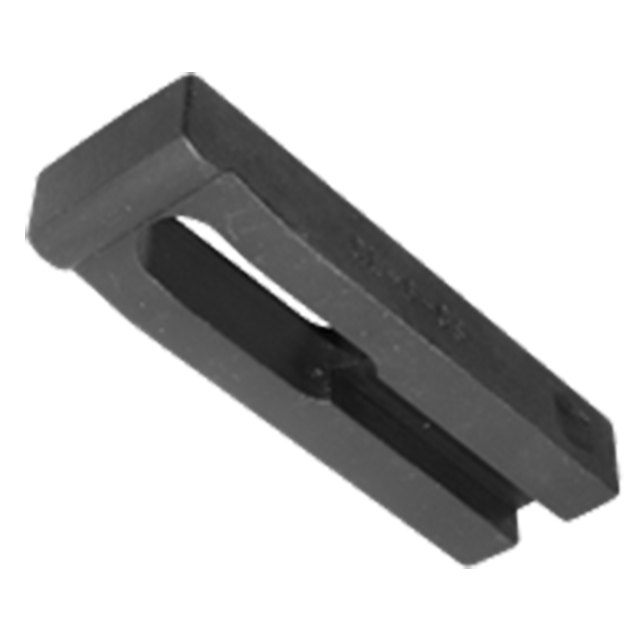

Heavy-duty steel version of the Slotted-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a slot underneath to slide straight back for clear loading. An indentation at the rear of each side provides a secure finger grip for retracting the clamp. Made in USA.
Application Information
Slotted-Heel Clamp Straps have a slot underneath to slide straight back for clear loading.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
Parts Specification
| A Stud Size (Inch) | B (Inch) | C (Inch) | D (Inch) | E (Inch) | F (Inch) | G (Inch) | H (Inch) | J (Inch) | K (Inch) | L (Inch) |
| 3/8-16 or M10" | 1/2" | 1-1/8" | 3" | 1-9/32" | 7/8" | 13/32" | 1/2" | 27/64" | 9/32" | 3/8" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Size:
M10
