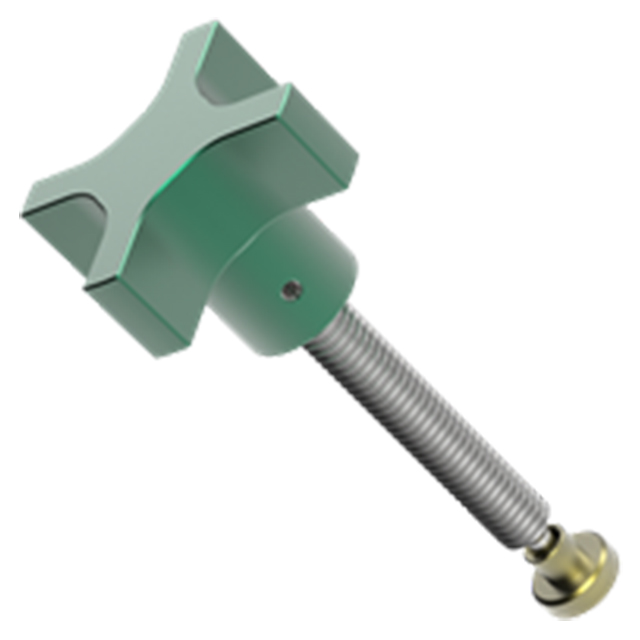

Extruded Hand Knob Swivel Feet
Extruded Hand knob assembly with a removable swivel foot. Clamping screw is securely pinned in the knob. Four-prong design provides a firm grip for applications requiring quick tightening and high torque. Made in the USA.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Knob | Extruded Aluminum | - | Green Anodize | Yes | Yes |
| Screw | 1215 Steel | - | Zinc Plated Clear Chromate | Yes | Yes |
| Steel Foot | 1215 Steel | - | Zinc Plated Clear Chromate | Yes | Yes |
| Delrin Foot | White Delrin 500 | - | Yes | Yes | Yes |
Parts Specification
| A Thread | B (Inch) | C (Inch) | D Diameter (Inch) | E Diameter (Inch) | F | H (Inch) | K Diameter (Inch) |
| 1/4-20 | 2" | 1/8" | 1" | 3/8" | 5/16 | 7/8" | 1/2" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
