Cable

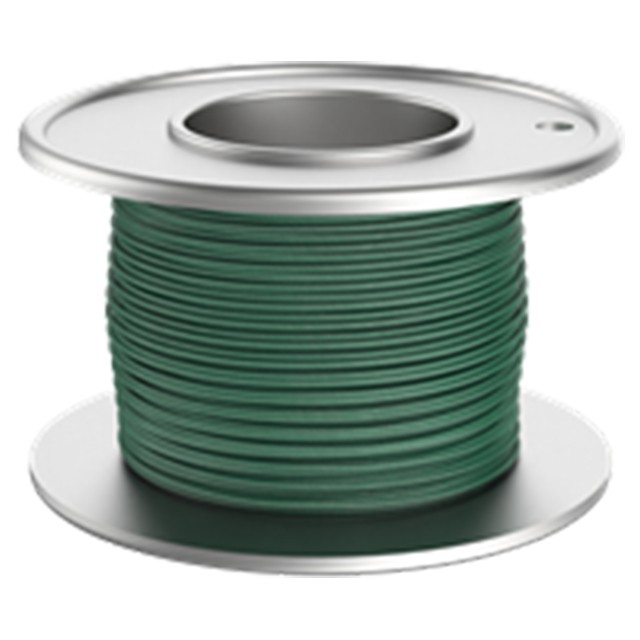

High-strength stranded wire cable with a green nylon coating. Choice of four cable diameters. Cable size #1 is made of stainless Steel. Sizes #2, #3, and #4 are made of galvanized Steel, Specify the length of cut cable pieces in inches to one decimal place, from 3.0" minimum to 599.9" maximum. Cut pieces are held to +/-1/4" tolerance up to 24" long.
Application Information
Cable Assemblies are ideal for attaching removable alignment pins and other tooling components.
Material
Steel:
Galvanized Steel stranded wire, nylon coated. DFARS and RoHS compliant.
Stainless Steel:
Stainless Steel stranded wire, nylon coated. RoHS compliant.
Parts Specification
| Material (Inch) | Cable Size (Inch) | Length (Inch) | D Diameter After Coating (Inch) | D Diameter Before Coating (Inch) | Cable Construction (Inch) | Breaking Strength (lbs) |
| Stainless Steel" | 2" | 100 Feet" | 0.062" | 0.047" | 7 x 7" | 270 lbs |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
