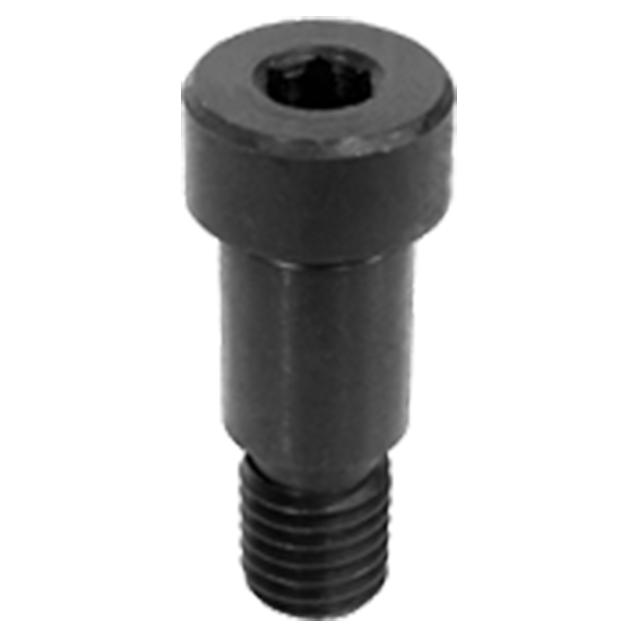

Shoulder Screws
Precision close-tolerance Shoulder Screw. The shoulder diameter is ground to a closer tolerance than ordinary stripper bolts, for better bearing action. Shoulder length is held to a plus tolerance to allow a nominal-size plate to swing freely underneath the head.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Alloy Steel | Heat Treated Rc 32-43 | Black Oxide | Metric | Yes |
Parts Specification
| Shoulder Diameter Nominal (Inch) | Shoulder Diameter Actual (Inch) | A Thread (Inch) | B Nominal (Inch) | B Actual (Inch) | D (Inch) | E (Inch) | F Diameter (Inch) | G (Inch) |
| 3/8" | 0.3750" | 5/16-18" | 3/8" | 0.3750" | 1/4" | 1/2" | 9/16" | 3/16" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
3/8"
Ships:
From Manufacturer
