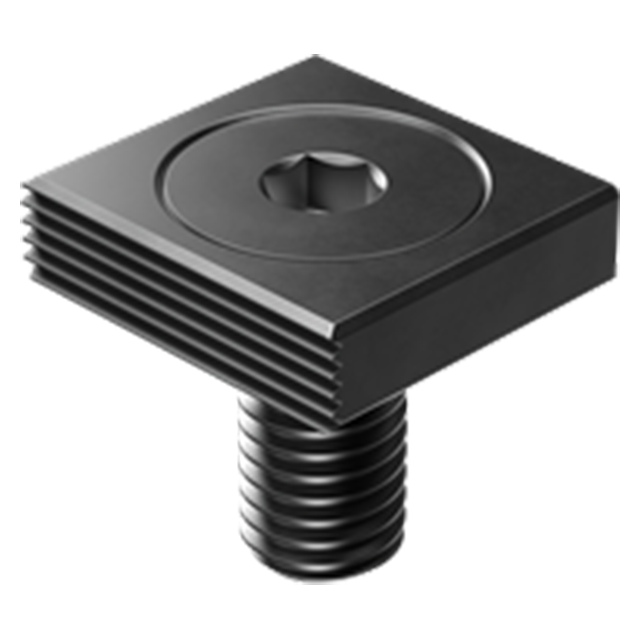

Carr Lane CL-2-TVLP | #8-32 Thread Tiny Vise Edge Clamp

Tiny Vise Edge Clamps-Low Profile

Low-profile Tiny Vise clamps are ideal for thin workpieces, and whenever downthrust action is not required. These mini edge clamps securely grip the side of a workpiece to keep the top clear for machining. Patented design features a slotted countersink to provide strong, reliable clamping force with the easy turn of a hex wrench. These compact clamps are ideal for fixturing multiple parts, small or large. These clamps look so simple, but work amazingly well, with major advantages over earlier designs. Each clamp has both a serrated face (for maximum gripping) and a smooth face (to avoid marring finished parts). Made in USA.

Application Information

These low-profile clamps are ideal for thin workpieces, and whenever downthrust action is not required.

Clamping Action

Clamping force is applied by positive screw action with the easy turn of a hex wrench Patented design features a slotted countersink.

Design Considerations

Tiny Vise clamps are designed to provide strong clamping force when tightened by hand. Recommended torque and clamping force are at 1/3 of yield strength, leaving 2/3 of holding capacity to resist external cutting forces.

Material

Parts Specification
