Straight Index Plungers
Index plungers are precision, heavy-duty assemblies with a retractable spring-loaded plunger and a matching locating bushing. Straight Index Plungers have an entirely cylindrical plunger with a slight radius at the tip, used together with a straight bushing. A straight plunger provides slightly greater positional accuracy Made in USA.
Application Information

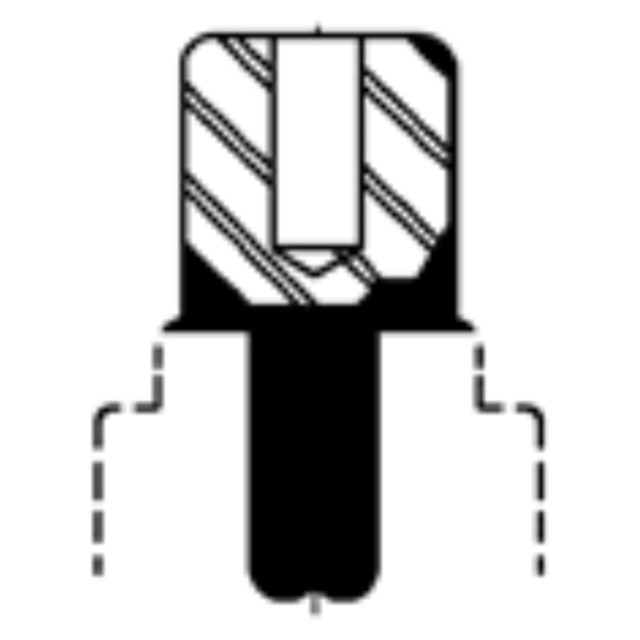

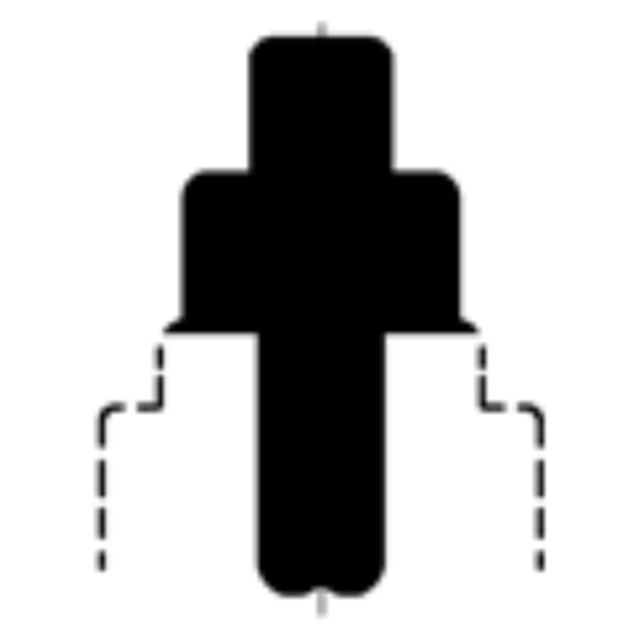

Customize by threading
Customize by tapping

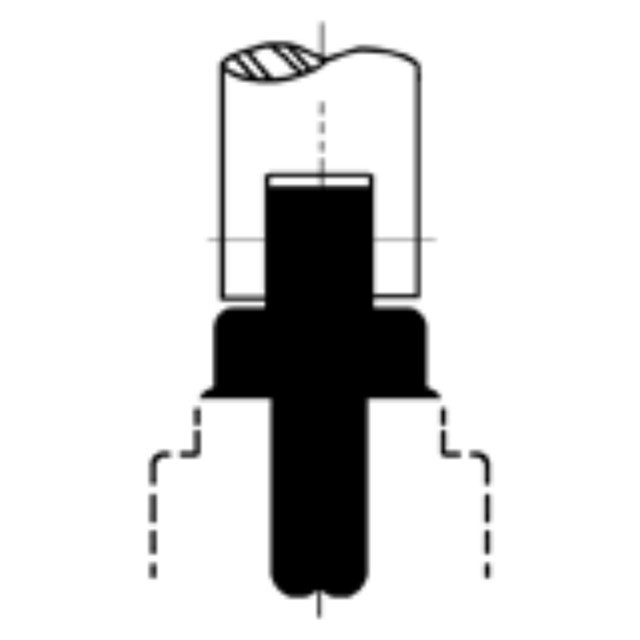

Customize for an external link

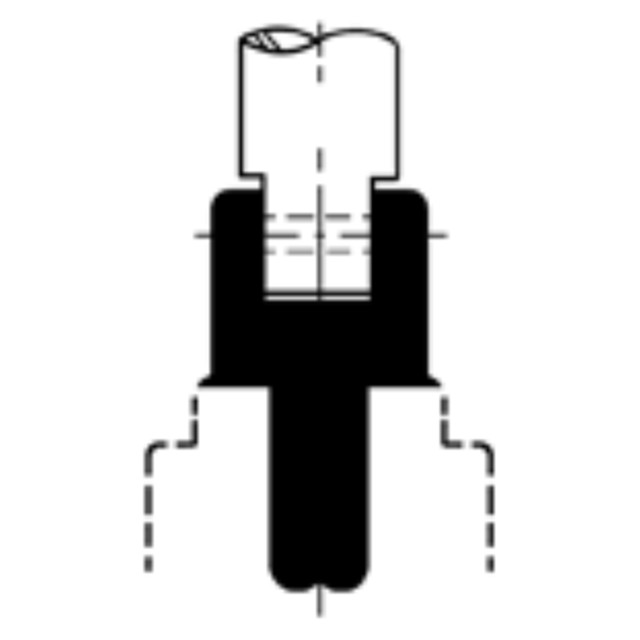

Customize for an internal link

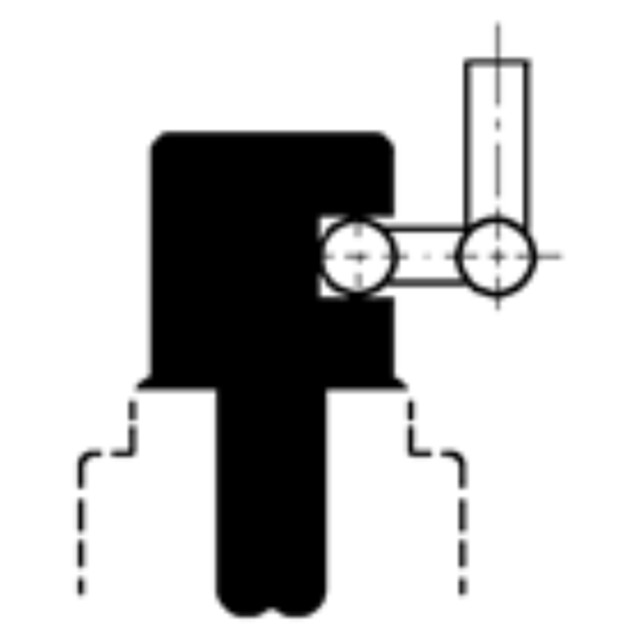

Customize for a bell crank

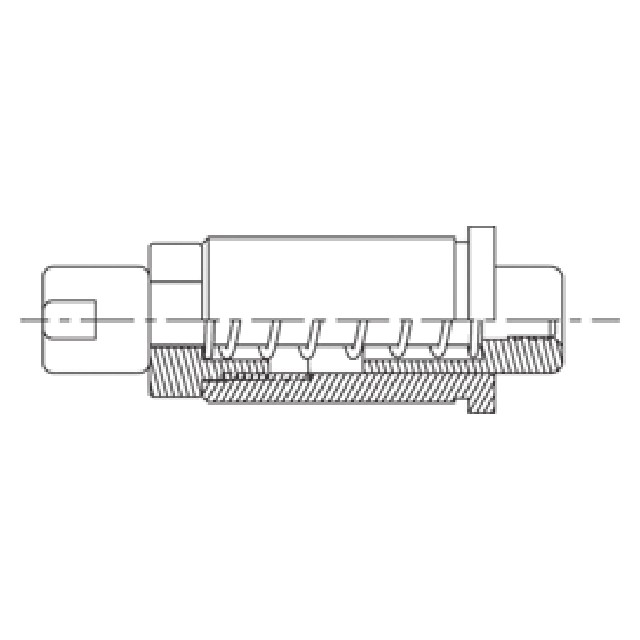

Internal View
Installation
Index plungers are manufactured with precision working tolerances and are designed for very light interference-fit installations to avoid binding of the mechanism.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body,Plunger and Retainer | 1144 Steel | Heat Treated Rc 50-55 | - | Yes | Yes |
| Center Shaft with Blank End | 1144 Steel | - | - | Yes | Yes |
| Spring | Music Wire | - | - | Yes | Yes |
| Bushing | 1144 Steel | Heat Treated | - | Yes | Yes |
Parts Specification

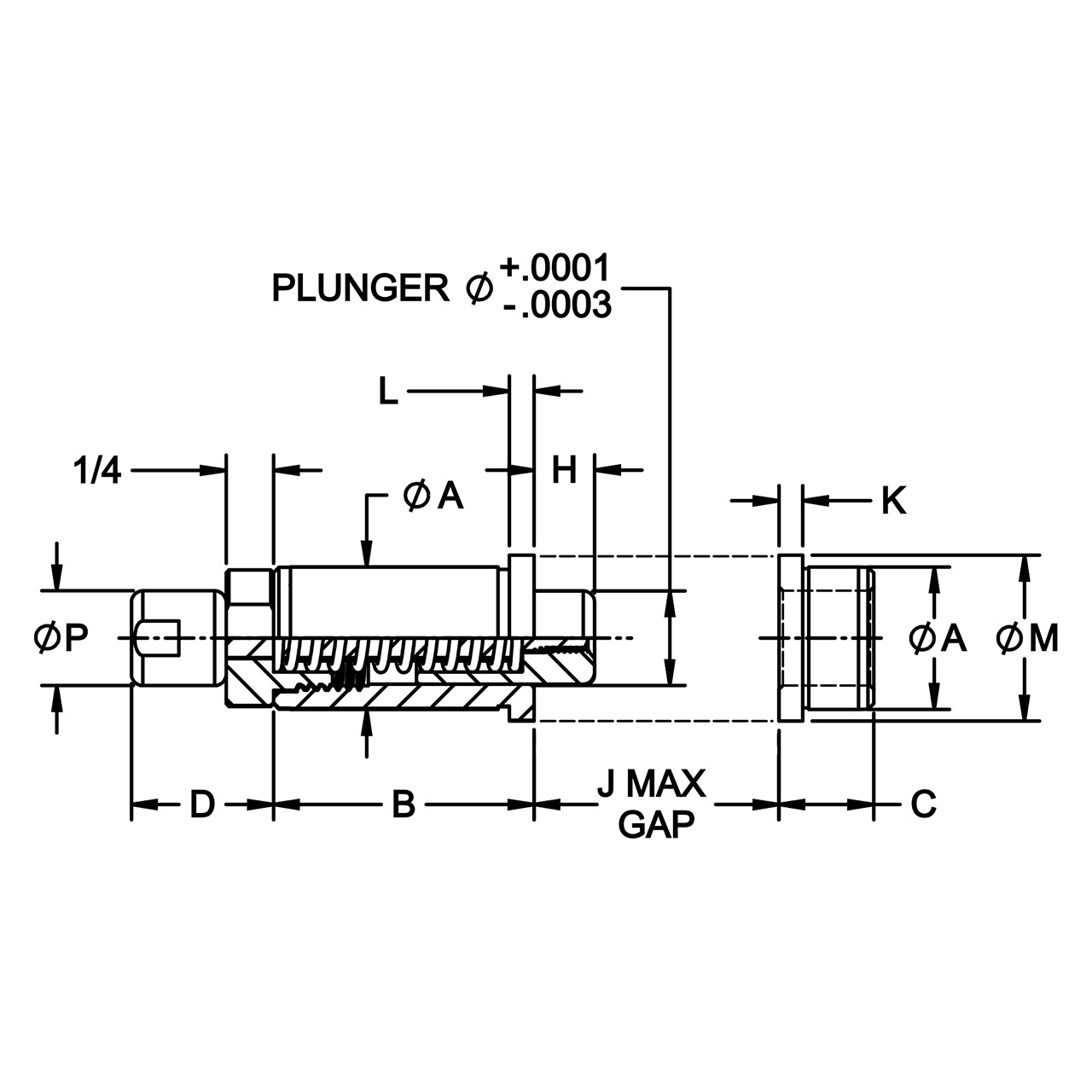

| Plunger Diameter (inch) | A Diameter Nominal (inch) | A Diameter Actual (inch) | B (inch) | D (inch) | H (inch) | J (inch) | L (inch) | P Diameter (inch) |
| 3/4" | 1-1/8" | 1.1268 / 1.1265 (Ground)" | 2" | 1" | 1/2" | 1/8" | 1/8" | 3/4" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
