Tapered Index Plungers

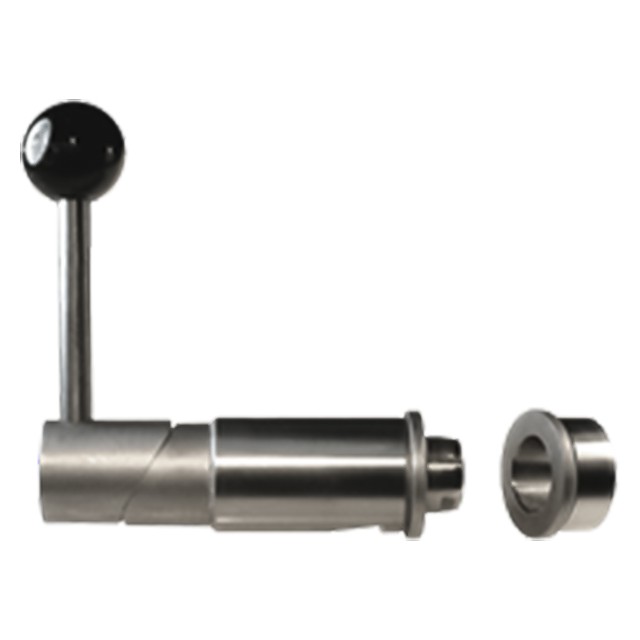

Tapered Index Plungers x plungers are precision, heavy-duty assemblies with a retractable spring-loaded plunger and a matching locating bushing. Tapered Index Plungers feature a 15° taper on the plunger tip with a mating taper in the bushing. The taper makes alignment easier and also eliminates any binding during retraction Rotary-cam action completely retracts the plunger when the handle is rotated 180°. Cam surfaces are hardened steel. Made in USA.
The standard-mount configuration has a whistle notch on the Index Plunger for orientation with a setscrew.
Installation
Index plungers are manufactured with precision working tolerances and are designed for very light interference-fit installations to avoid binding of the mechanism. Setscrews with nylon tip inserts are recommended. Setscrews should firmly contact the whistle notch, but not exert significant force.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Plunger,Body and Cam | 1144 Steel | Heat Treated Rc 50-55 | - | Yes | Yes |
| Center Shaft | 1144 Steel | - | - | Yes | Yes |
| Spring | Music Wire | - | - | Yes | Yes |
| Ball Knob | Black phenolic plastic with molded-in brass insert | - | - | Yes | Yes |
| Bushing | 1144 Steel | Heat Treated | - | Yes | Yes |
Parts Specification
| Plunger Diameter (inch) | A Diameter Nominal (inch) | A Diameter Actual (inch) | B (inch) | D (inch) | E (inch) | F (inch) | G (inch) | H (inch) | J (inch) | L (inch) | M Diameter (inch) |
| 1" | 1-1/2" | 1.516 / 1.515 (Unground)" | 2-1/4" | 2-1/8" | 4-1/2" | 11/16" | 7/16" | 7/16" | 1/8" | 1/8" | 1-5/8" |
