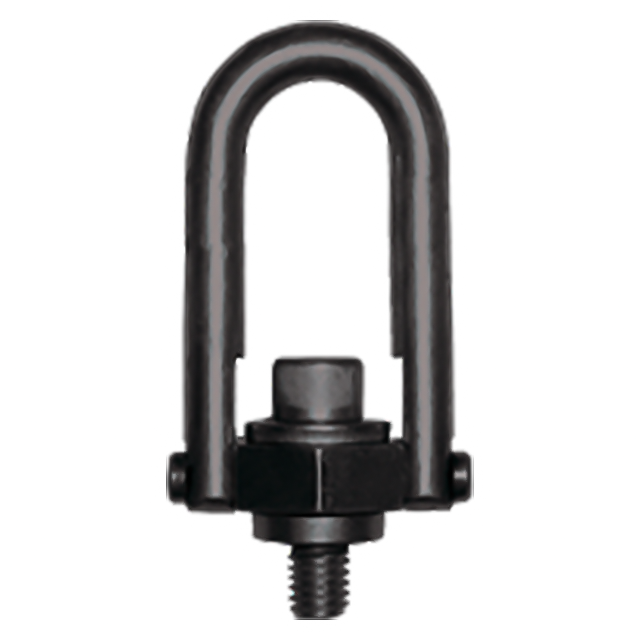

Swivel Hoist Rings
Long-ring version of the original safety-engineered hoist ring. The longer ring provides extra reach and allows using larger lifting hooks. Swivel Hoist Rings pivot 180° and swivel 360° simultaneously to allow lifting from any direction.
Application Information
The original safety-engineered hoist ring. Pivots 180 degrees and swivels 360 degrees simultaneously to allow lifting from any direction.
Material
| Item | Material | Heat Treat | FINISH |
| Swivel Hoist Rings (Long Ring) | Alloy Steal | Heat Treated | Black Oxide(Electroless Nickel Finish or Cadmium Plating available as a special) |
Parts Specification
| Load Rating (lbs) | A Thread | B (Inch) | C (Inch) | D (Inch) | E Diameter (Inch) | F (Inch) | G (Inch) | H (Inch) | J (Inch) | K (Inch) | L (Inch) | N Diameter (Inch) | P (Inch) | Installation Torque (ft-lbs) |
| 2500 | 1/2-13 | 1.28" | 1.22" | 6.72" | 3/4" | 0.88" | 3.25" | 1.99" | 3.52" | 1.72" | 6.19" | 1.5" | 0.16" | 28 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
