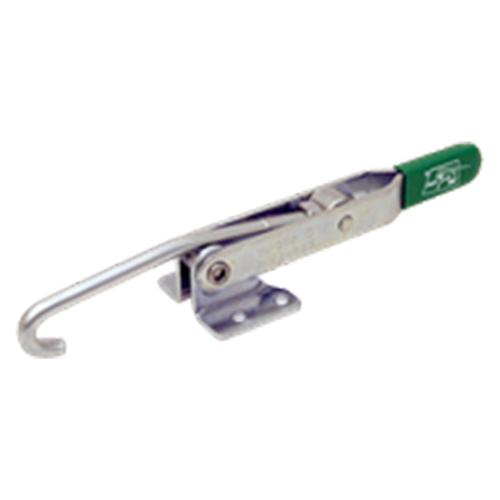

CL-250-PA Series-375lbs.
Latch clamp with a versatile hook for grasping a rod or rim. Clamp latches horizontally, vertically, or at any angle in between. 4" drawing movement. Threaded hook allows an 5/16" adjustment range.
Application Information
Horizontal Mounting Vertical Mounting
Design Considerations
To achieve full holding capacity, Hook-type latch clamps must be used together with the optional latch plate, or with a suitable custom latch point of equal centerline height.
Material
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1008, 1010, and/or 1018 Steel | - | Zinc plated clear chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
Parts Specification
| Description | Holding Capacity (lbs.) | Shipping Weight (lbs.) | Replacement Hook |
| Flanged Base | 375lbs. | 0.8lbs. | CL-250-PA-HOOK |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Holding Capacity:
375 lbs.
Ships:
From Manufacturer
