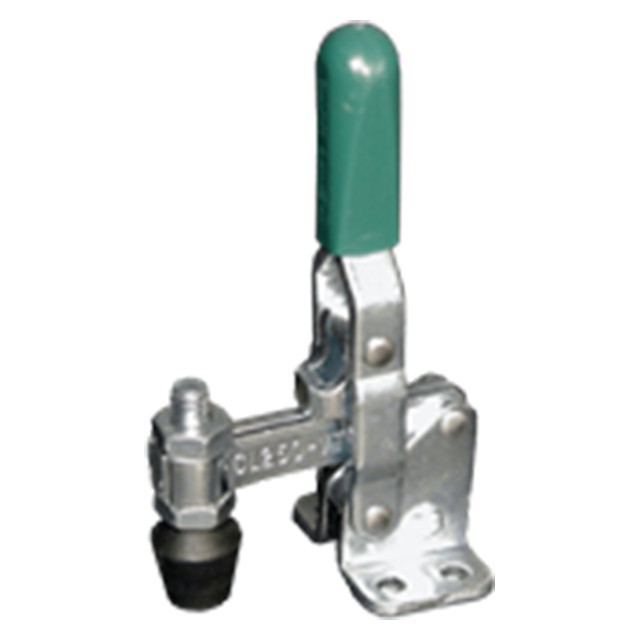

CL-250-VTC Series
Fixed Open Arm, Flanged Base
Arm opens 117° while handle moves 69°. Choose either a fixed open arm for fixed spindle location, or a long open arm for adjustable spindle location. Choice of flanged base or straight base.

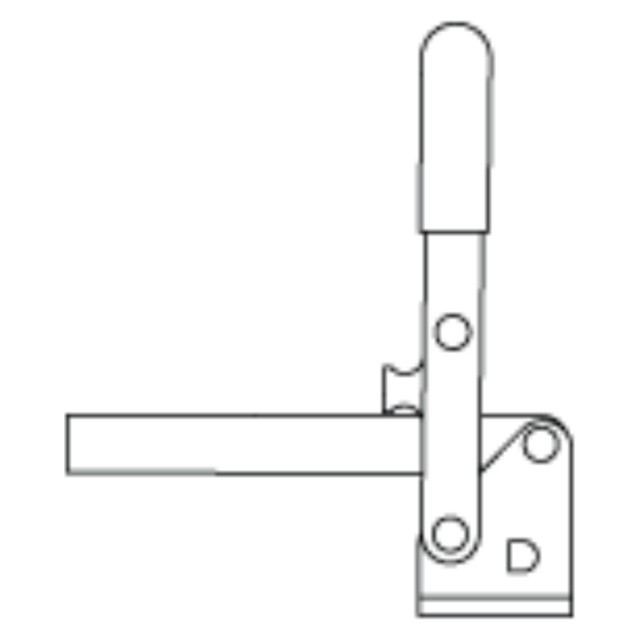

Clamping Action
Clamped Position
Open Position
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 300-Series Stainless | - | - | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
Parts Specification
| Description | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Long Open Arm, Flanged Base | 200lbs. | 0.4lbs. |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Holding Capacity:
200 lbs.
Ships:
From Manufacturer
