Jig Leg Plates
Precision rest pad with a large contact area, ground for accurate height location. Mount with two socket-head cap screws (not furnished). Jig Leg Plates are extremely useful as supports, side locator pads, and jig feet. Made in USA.

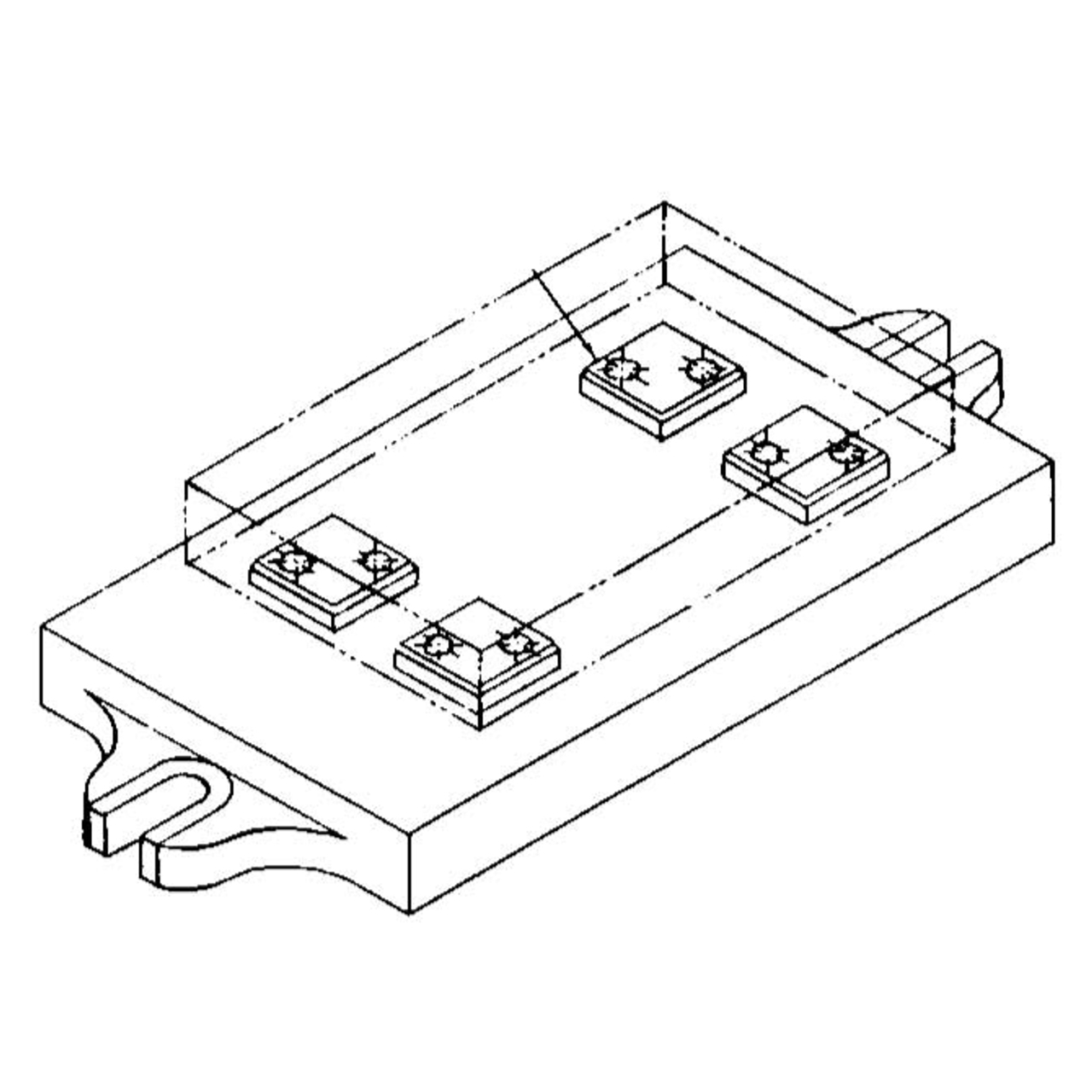

Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1020 Steel | carburized-hardened | Black Oxide | Yes | Yes |

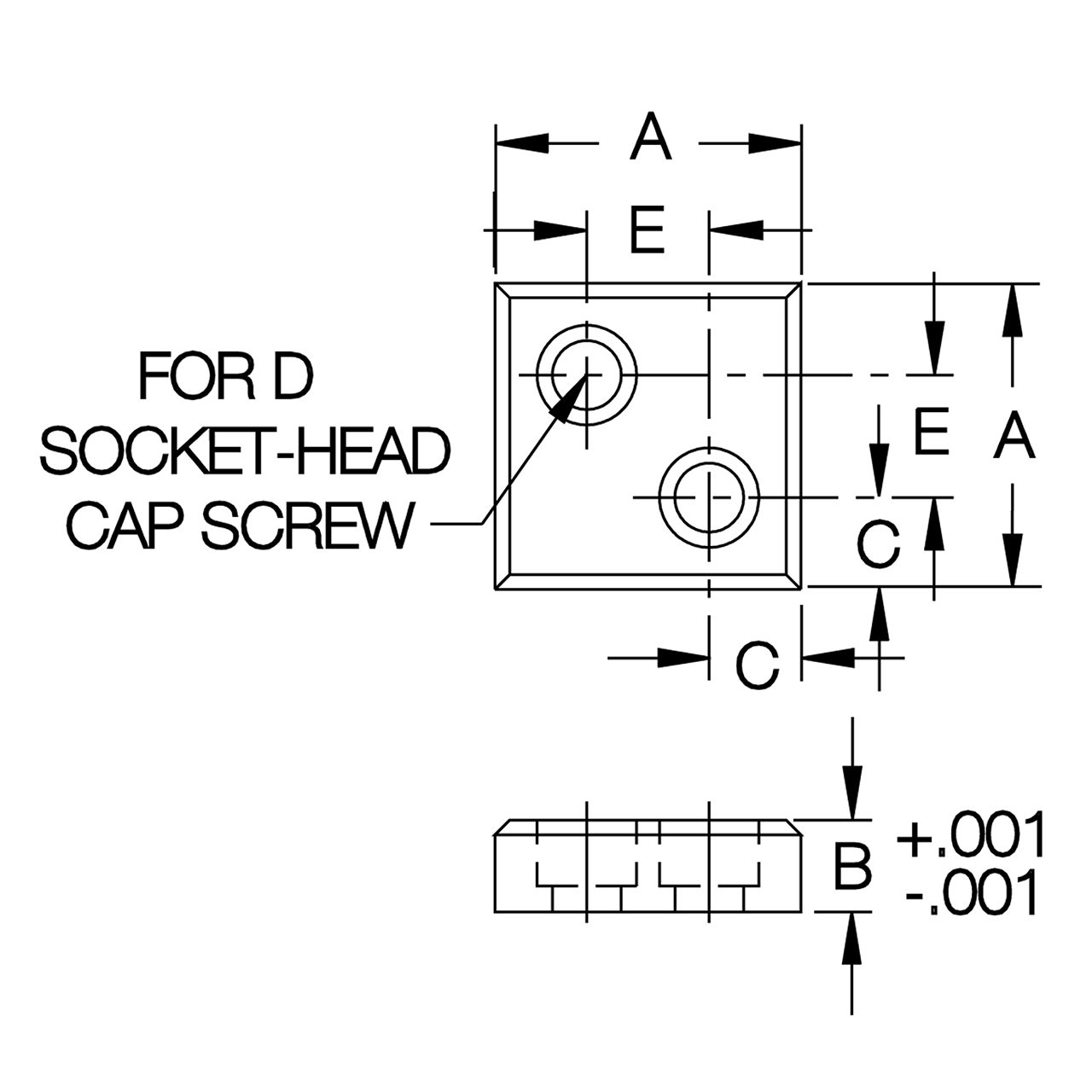

Parts Specification
| A (Inch) | B (Inch) | C (Inch) | D (Inch) | E (Inch) |
| 1-1/2" | 0.4375" | 7/16" | 1/4-20 or M6" | 5/8" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
1-1/2"
Diameter (Decimal Inch):
1.5000"
Diameter (mm):
38.10mm
