Delrin Spherical-Radius Locator Buttons
Rest Button with a spherical-radius head to minimize workpiece contact area. Delrin prevents marring, and the shank allows press-fit installation in a reamed hole. Spherical-Radius Locator Buttons are extremely useful as supports, side locator pads, and jig feet. Made in USA.
Material
| Material | Heat Treat | Finish |
| White Delrin | - | - |

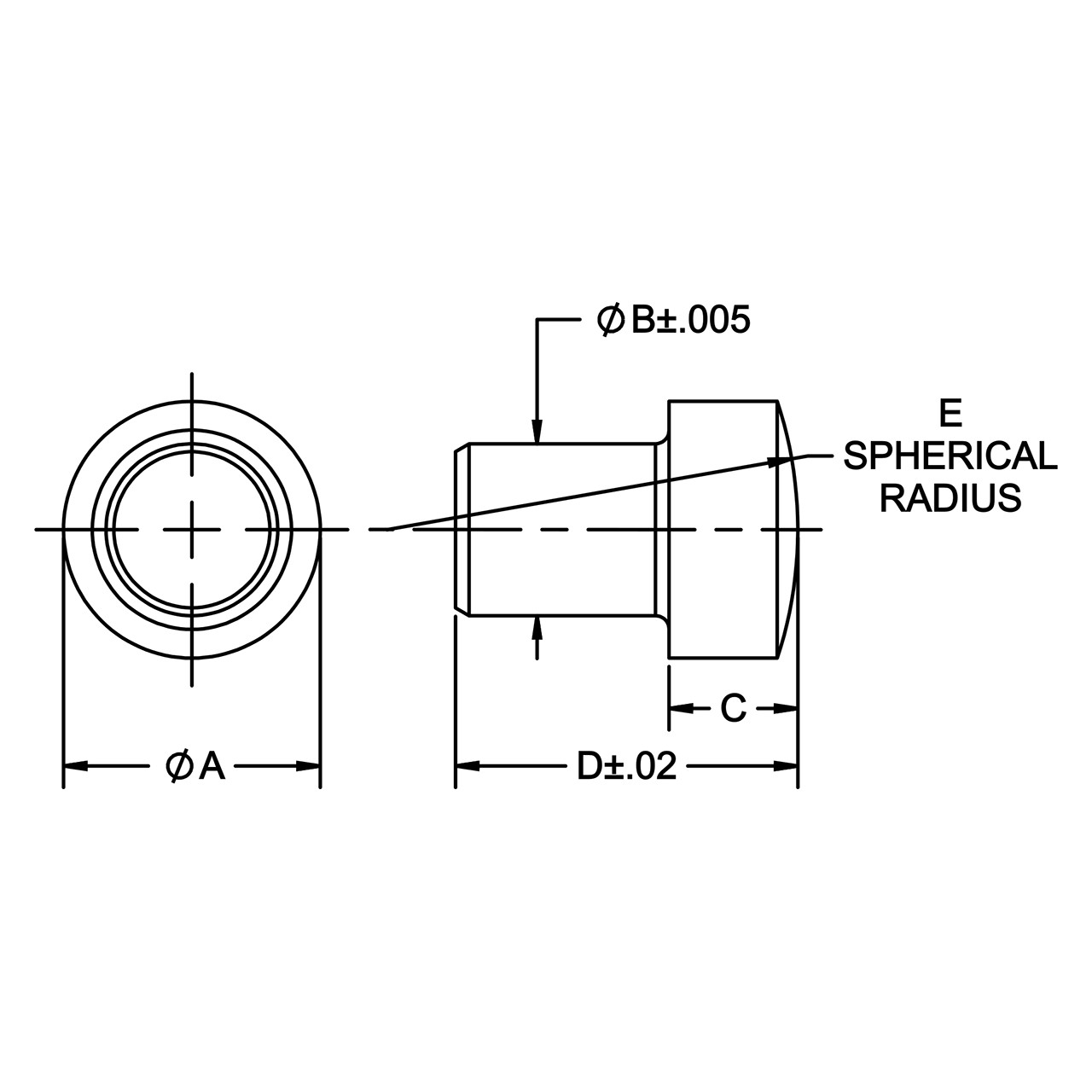

Parts Specification
| A Diameter (Inch) | B Diameter (Inch) | C (Inch) | D (Inch) | E (Inch) |
| 1/2" | 0.3760" | 0.188" | 0.563" | 3/4" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
1/2"
Diameter (Decimal Inch):
0.5000"
Diameter (mm):
12.70mm
