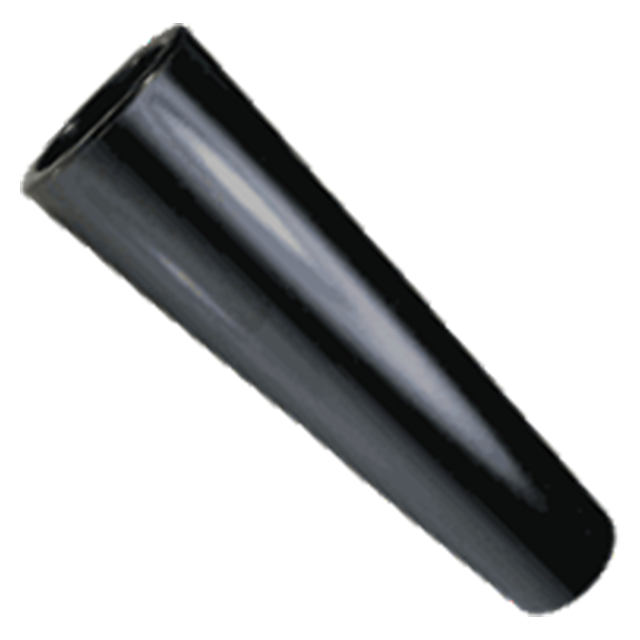

Tapered Handles-Counterbored Through Hole
Heavy-duty design that makes an excellent grasp handle or machine shift lever. The version shown here is made of solid phenolic plastic, with a counterbored through-hole. This type can be used as a rotating handle by installing with a Shoulder Screw. Made in USA.

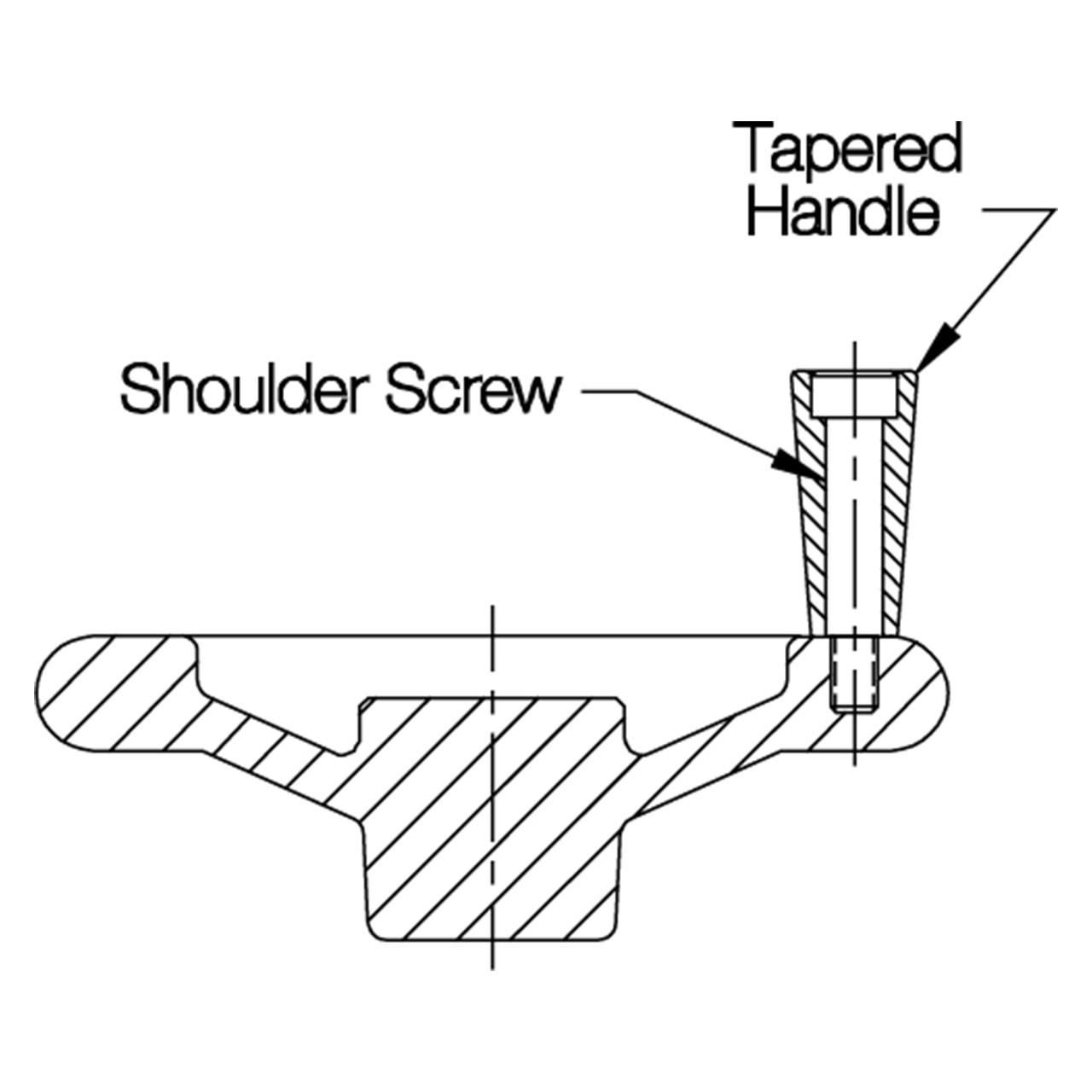

Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Black phenolic plastic (glossy smooth Finish, extremely hard, electrical insulator, operating temperatures to 300°F, resistant to oils and most common chemicals) | Yes | Molded-in Brass Insert | Yes | Yes |

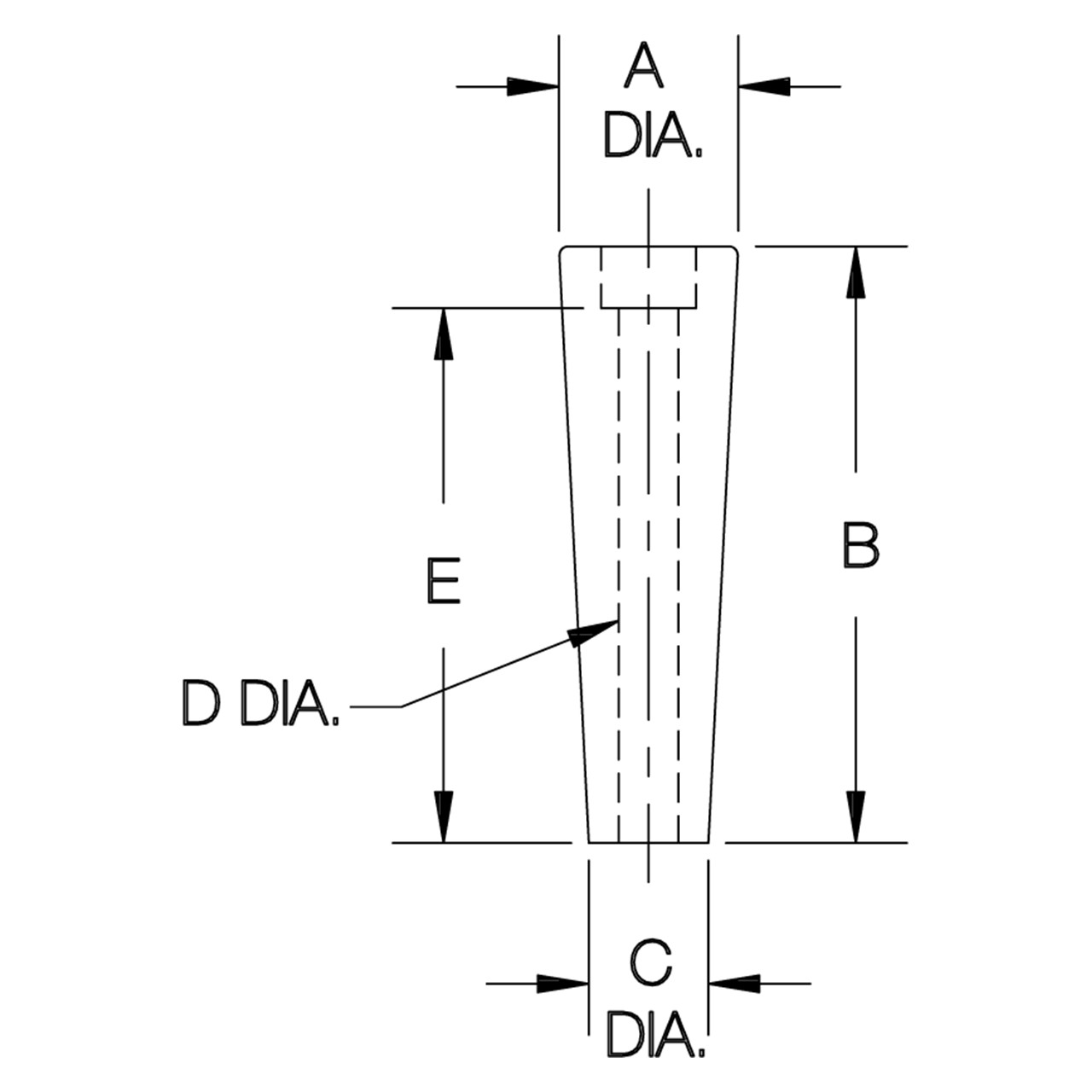

Parts Specification
| A Diameter (Inch) | B (Inch) | C Diameter (Inch) | D Diameter Nominal | D Diameter Actual | E (Inch) |
| 1-3/8" | 4-3/32" | 1" | 3/8 | 0.380/0.390 | 2-5/8" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
