Carr Lane CL-303-TC | 850 lbs Hold Capacity Toggle Clamps with Extra Arm Height

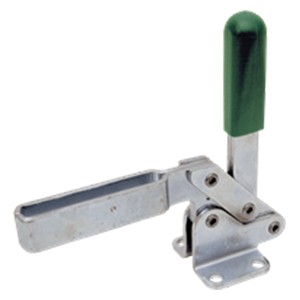

Product Information

CL-301-TCOpen Arm, Flanged Base Simple, easy-opening toggle clamps with extra arm height. Arm opens 83 Degree while handle moves 83 Degree – ideal when wide opening is not desirable. Choose either an open arm for adjustable spindle location, or a solid arm for fixed spindle location. Open-arm clamps are optionally available with a straight base. 850 lbs holding capacity.

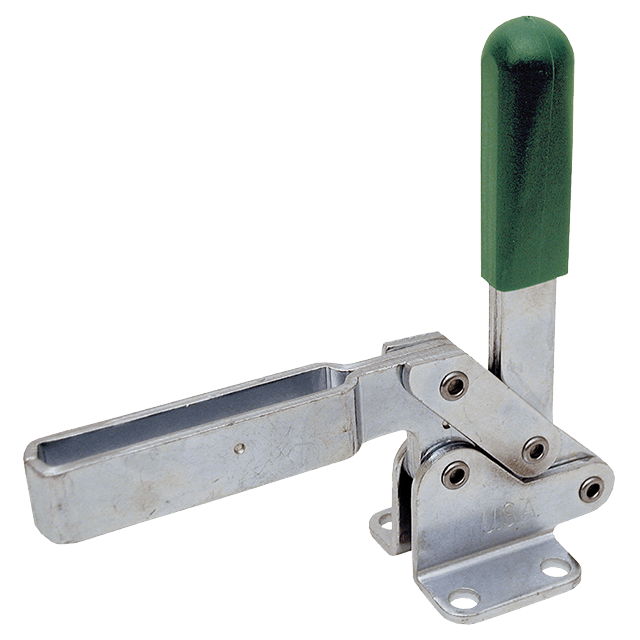

Models Available

CL-301-TCOpen Arm, Flanged Base CL-302-TCOpen Arm, Straight Base CL-303-TCSolid Arm, Flanged Base

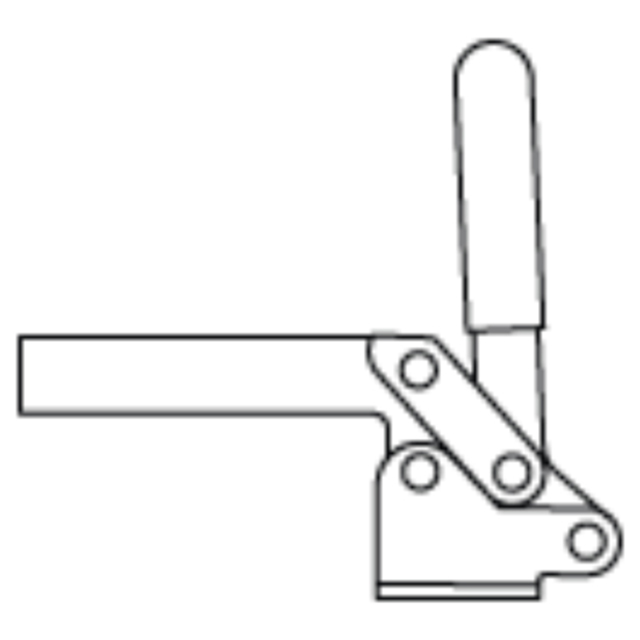

Clamping Action

Clamped Position Open Position

Accessories

Open-arm models accept any 3/8-16 or M10 spindle and (2) CL-3811-TW flanged washers. Solid-arm models accept any 3/8-16 spindle and CL-3878-S weld-on bolt retainer. Order all accessories separately (see Related Products below).

Material

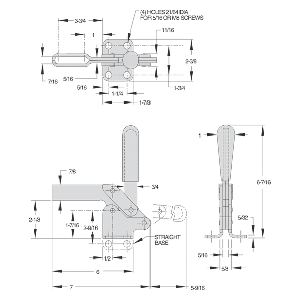

Parts Specification
