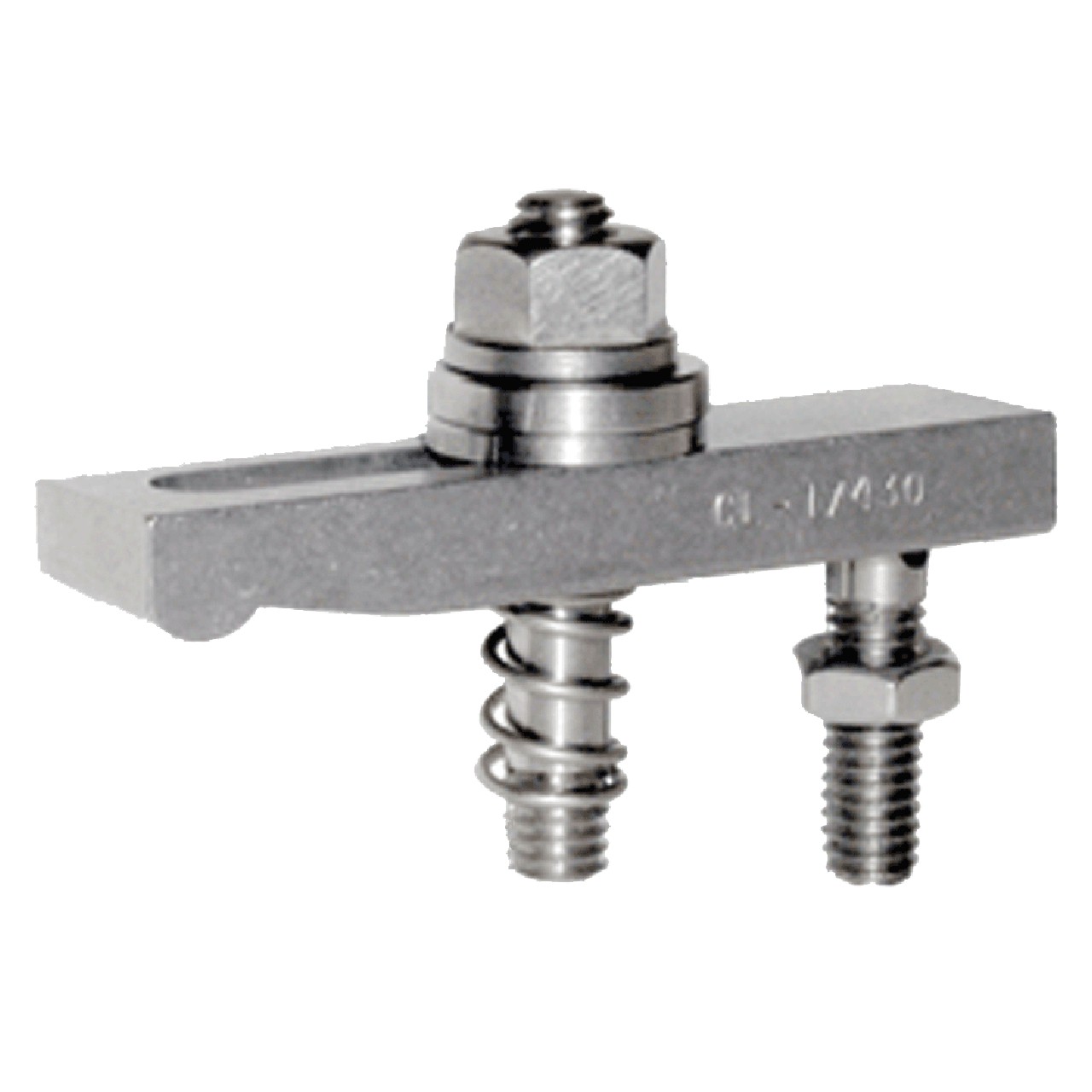

Slotted-Heel Clamp Strap Assembly
Mini-size stainless steel version of Slotted-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a slot underneath to slide straight back for clear loading.
Application Information
Slotted-Heel Clamp Straps have a slot underneath to slide straight back for clear loading.
Assembley with Spherical Nut and Washer (-2)
This clamp assembly includes a Slotted-Heel Clamp Strap plus the following Items:
- Spherical Nut & Washer
- Clamping Stud
- Clamp Spring
- Flat Washer
- Jam Nut
- Clamp Rest
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 300-Series Stainless Steel | - | - | Yes | Yes |
Parts Specification
| Thread Size (Inch) | A (Inch) | B (Inch) | C (Inch) | E (Inch) |
| 3/8-16" | 4" | 1" | 1/2" | 1-13/16" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
