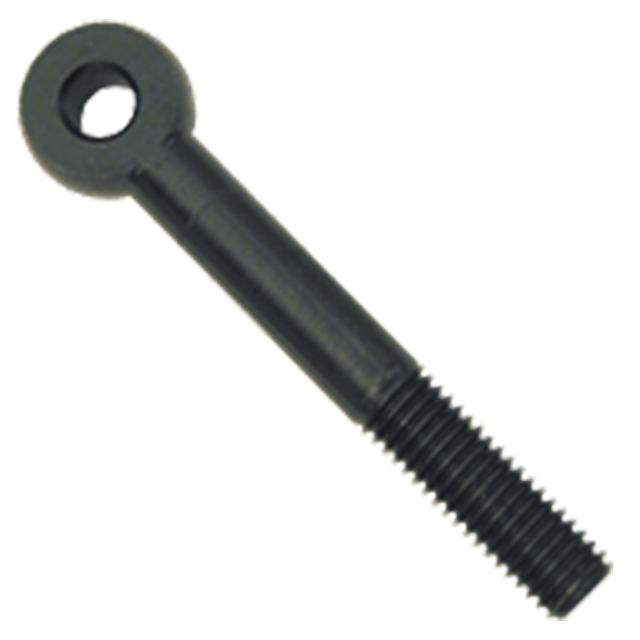

Eye Bolts
High-strength Eye Bolt with a reamed bearing hole.
Application Information
Material
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Eye Bolts | 1144 steel, 115,000 psi min tensile strength, 100,000 psi min yield strength | - | Black Oxide | Yes | Yes |
| Stainless Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Eye Bolts | 300-series stainless steel | - | Passivated | Yes | Yes |
Parts Specification
| A Thread (Inch) | D Diameter Nominal (Inch) | D Diameter Actual (Inch) +.002/-.000 | B (Inch) | C (Inch) | E (Inch) | F Nominal (Inch) | F Actual +.000/-.005 |
| 5/16-18" | 1/4" | 0.250" | 4" | 2" | 5/8" | 5/16" | 0.312 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
