Carr Lane CL-3330 | 5/16-18 Thread Tapped-Heel Clamp Strap

Tapped-Heel Clamp Strap Assembly

Mini-size stainless steel version of Tapped-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut.

Application Information

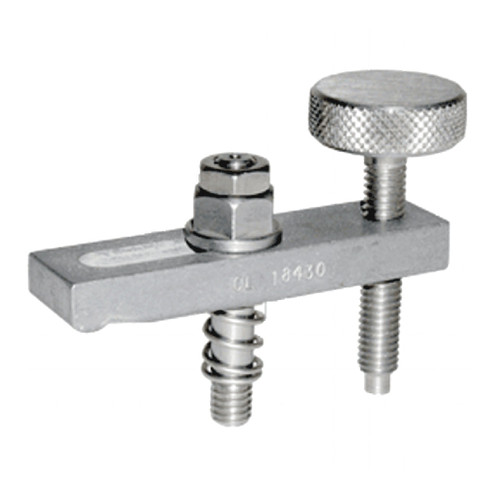

Assembley with Knurled-Head Screw

This assembly includes a Tapped-Heel Clamp Strap plus the following Items:

• Knurled-Head Screw
• Flange Nut
• Fixture Stud
• Clamp Spring
• Flat Washer
• Jam Nut

Material

Parts Specification
