Carr Lane CL-341-PFK-PACKOF2 | 1/4-20" Thread x 1-1/2" Diameter Fluted Knob (Thermoplastic)

$4.09
Brand:
Carr Lane
Thread Size:
1/4-20"
Diameter (Inch):
1-1/2"
Diameter (Decimal Inch):
1.5000"
Diameter (mm):
38.10mm
SKU:
50036020
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
Carr Lane CL-341-PFK-PACKOF2 | 1/4-20" Thread x 1-1/2" Diameter Fluted Knob (Thermoplastic)

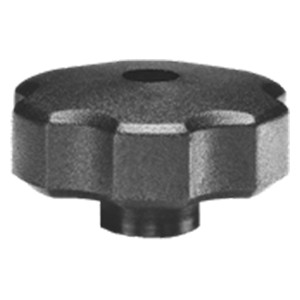

Product Information

Thermoplastic knob with a textured non-slip, non-glare finish. Large easy-grip knob that is excellent for either fine-adjustment or high-torque applications. Molded-in brass insert provides superior thread strength. Choice of two knob sizes, with tapped-hole sizes from 1/4-20 to 3/8-16. Non-standard thread sizes, reamed holes, molded-in studs, or special colors are available in quantities of 500 and above. Made in USA.

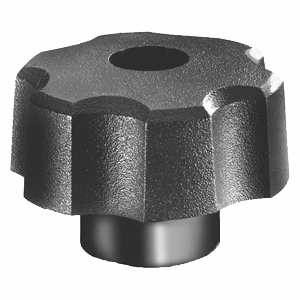

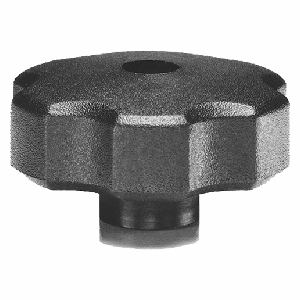

Available Sizes

5/16-183/8-16 1/4-205/16-18

Material

ITEMMATERIALHEAT TREATFINISHDFARSRoHS
Fluted Knobs – Tapped Through Hole (Thermoplastic)Black Thermoplastic (textured surface for secure gripping, excellent impact resistance, operating temperatures to 150 Degree)-Molded-in Brass Insert✔✔

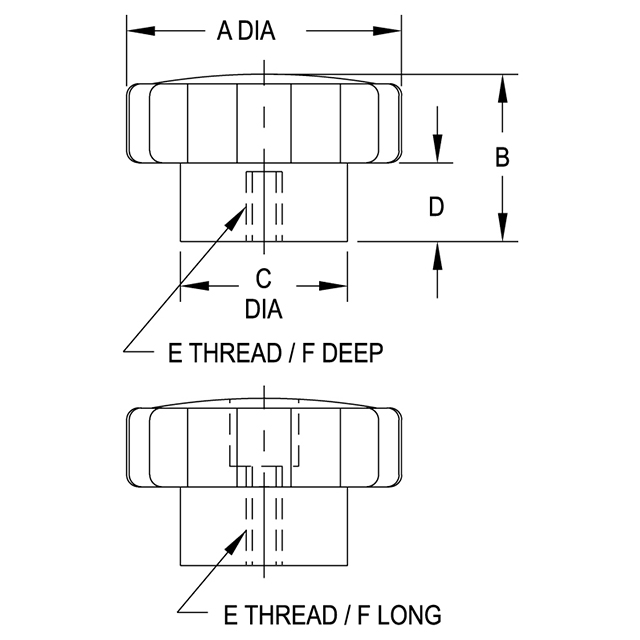

Parts Specification

Part NumberA DIABC DIADE THREADF THREAD LENGTH
CL-341-PFK-PACKOF21-1/213/43/81/4-205/8

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Carr Lane
Thread Size:
1/4-20"
Diameter (Inch):
1-1/2"
Diameter (Decimal Inch):
1.5000"
Diameter (mm):
38.10mm
