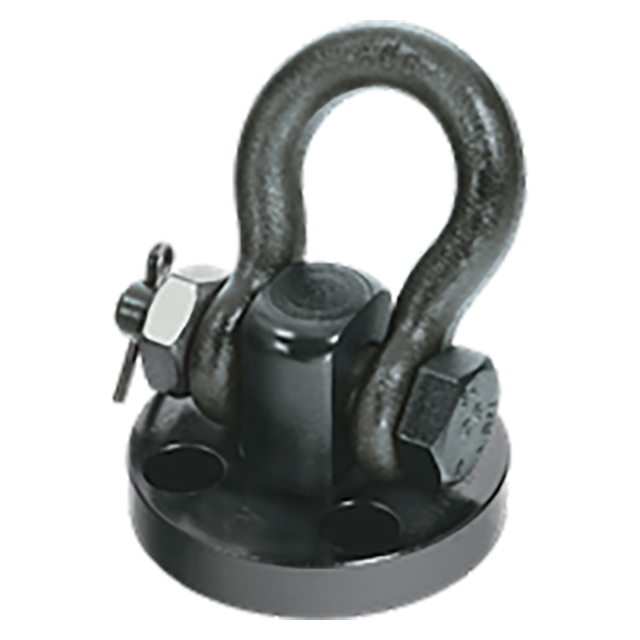

Carr Lane CL-36520-SHHR | 1/16"Diameter x 7/16" Size Shackle Hoist Ring

$169.45
Ships:
From Manufacturer
Brand:
Carr Lane
Ships:
From Manufacturer
SKU:
93006362
Weight:
1.30 LBS
Shipping:
Free Shipping

Shackle Hoist Rings

These swivel hoist rings are designed for permanent mounting on tooling and equipment. Forged alloy-steel shackle pivots 180° and swivels 360° simultaneously to allow lifting from any direction. Can be bolted or welded in place. Made in USA.

Installation

Fasten with four grade-8 socket-head cap screws. Alternatively, install by welding around the entire perimeter of the base (certified welding). Always install so that the hoist ring can pivot and swivel freely.

Material

ITEM MATERIAL HEAT TREAT FINISH
Shackle Hoist Rings Alloy Steel Heat Treated Black Oxide finish

Parts Specification

Load Rating (lbs)Nominal Shackle Size (inch)A (inch)B (inch)C (inch)D (inch)E (inch)F (inch)G (inch)H Dia (inch)J (inch)K Dia (inch)L Thread X Length (inch)
2000 lbs3/8"1.03"2.96"1.78".38"1.43".40".91"1.56"2.17"2.10"1/4-20 x 1/2"
