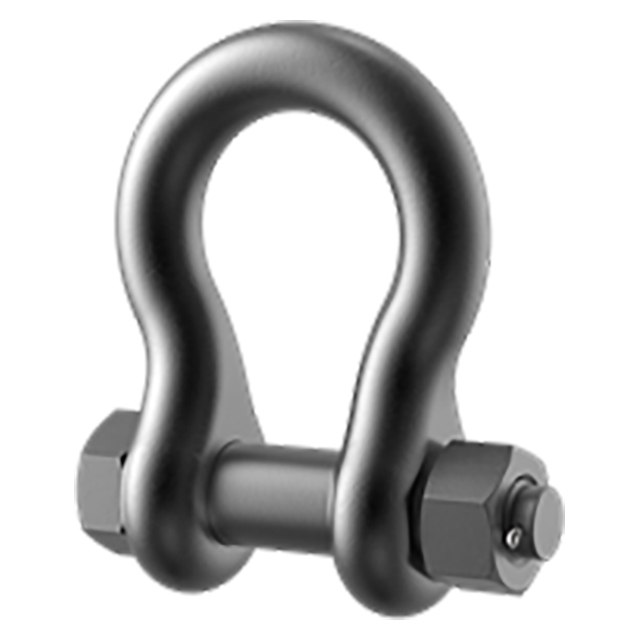

High-strength forged alloy-steel anchor shackle, available in seven sizes. Supplied with a thin-head bolt and a nut with cotter pin. Meets Federal Specification RR-C 271D, Type IVA, Grade A, Class 3. Safety factor = 6:1.
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| 1018 Steel | Carburized Hardened | Black Oxide | ✔ | ✔ |
Parts Specification
| Load Rating (lbs) (inch) | Nominal Shackle Size (inch) | A (inch) | B (inch) | C (inch) | D (inch) | E (inch) | F (inch) | G Dia (inch) | H (inch) | J (inch) | K (inch) |
| 3000 lbs | 7/16" | 2.91" | 2.03" | .44" | 1.16" | .75" | 1.69" | .50" | 2.51" | 1.06" | 7/16" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
