Product Information

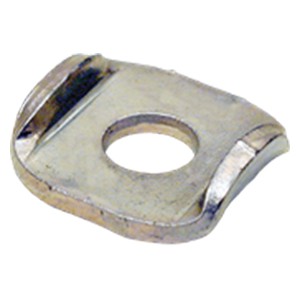

Use for mounting spindles on open-arm clamps. Use two flanged washers for each clamp, one above the arm and one below. Available for spindle sizes from #8-32 to 5/8-11 (M4 to M16 in metric). Also available in stainless steel.
Material
| Steel | |||||
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS | |
| 1008, 1010, and/or 1018 steel | - | Zinc Plated Clear Chromate | ✔ | ✔ | |
| Stainless Steel | |||||
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS | |
| 300-Series Stainless Steel | - | - | ✔ | ✔ | |
Parts Specification

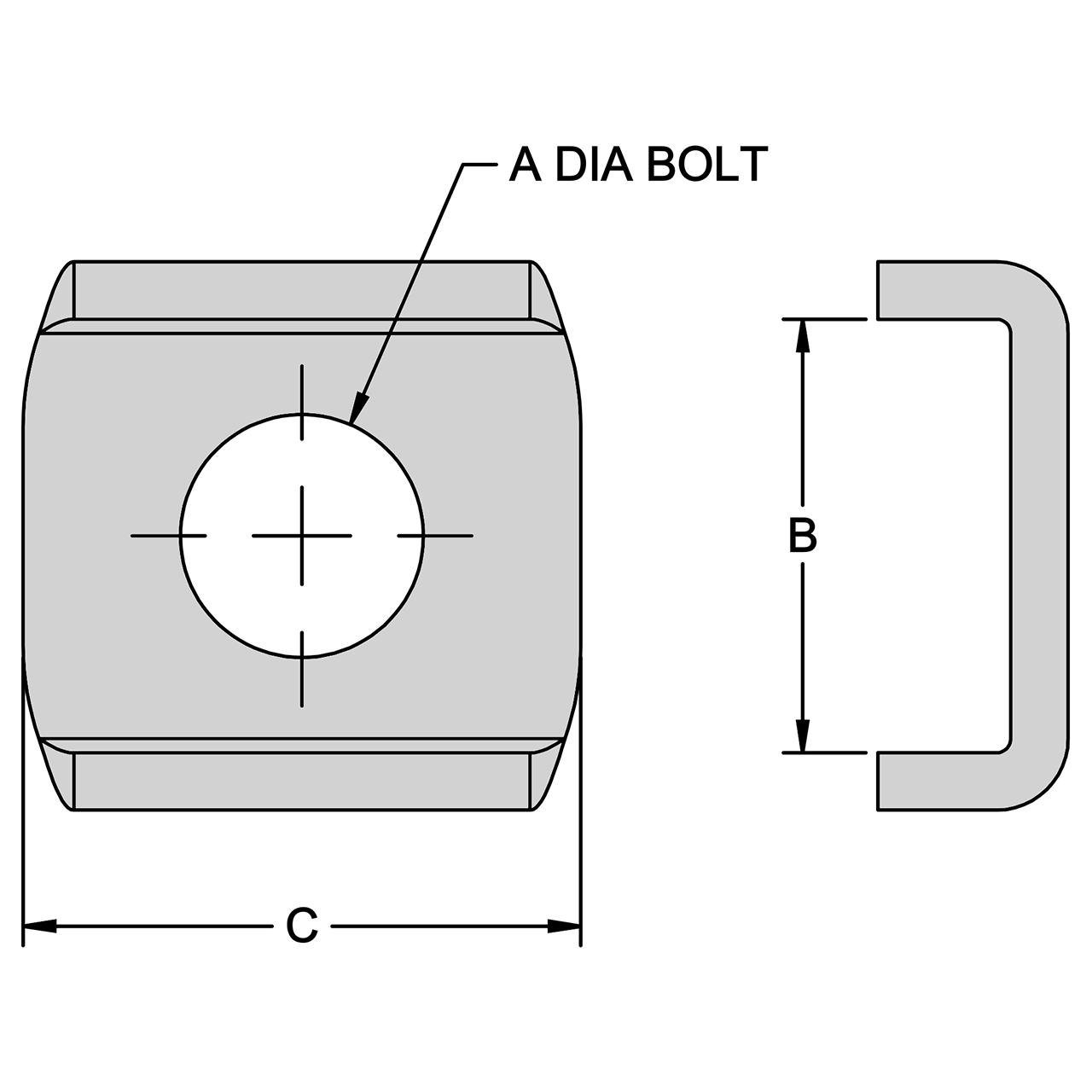

| Part Number | A | B | C DIA |
| CL-3811-TW-S-PACKOF2 | 3/8-16 or M10 | 25/32 | 1 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
