Carr Lane CL-3920 | #10-32 Thread Tapered-Nose Clamp Strap

$44.03
Ships:
From Manufacturer
Brand:
Carr Lane
Ships:
From Manufacturer
SKU:
50014625
UPC:
Weight:
0.10 LBS
Shipping:
Calculated at Checkout

Tapered-Nose Clamp Strap Assembly

Mini-size version of Tapped-Heel Clamp Straps. Tapered nose allows clamping in tight spaces. Since this strap is not slotted, turn 90° for loading clearance. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut.

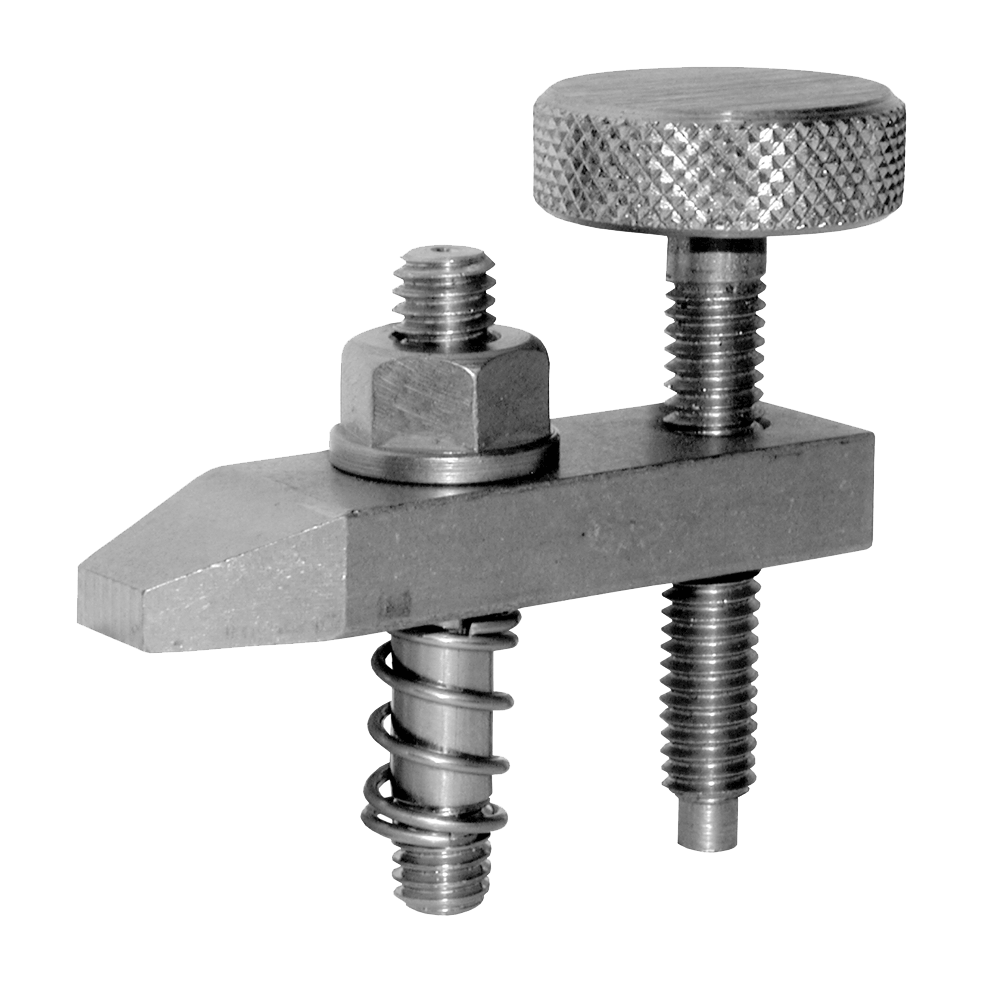

Assembly with Knurled-Head Screw

This assembly includes a Tapered-Nose Clamp Strap plus the following Items:

  • Knurled-Head Screw
  • Flange Nut
  • Fixture Stud
  • Clamp Spring
  • Flat Washer
  • Jam Nut

Material

MaterialHeat TreatFinishDFARSRoHS
300-Series Stainless Steel--YesYes

Parts Specification

Thread SizeA (Inch)B (Inch)C (Inch)E (Inch)
#10-322"1/2"1/4"27/32"
