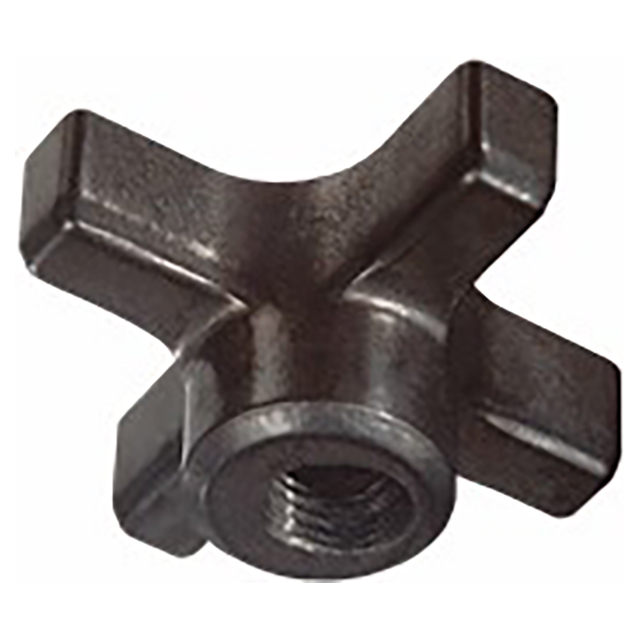

Carr Lane CL-4-QAK | 1/2-13" Thread x 1" Diameter Quick-Acting Knob

$10.78
Ships:
From Manufacturer
Brand:
Carr Lane
Ships:
From Manufacturer
SKU:
50018638
Weight:
0.29 LBS
Shipping:
Calculated at Checkout

Quick-Acting Knobs

Quick-acting four-prong knob that slides in and out of clamping position, ideal when the knob must be completely removed for loading. Tilt knob to slide in, then straighten to engage threads and tighten. To remove, loosen knob, then tilt to slide out. Four-prong design provides a firm grip for applications requiring quick tightening and high torque. Made in USA.

Clamping Action

Tilt knob to slidein.

Design Considerations

For full strength, use a stud that extends slightly beyond the knob, to ensure that all threads are engaged.

Material

Item Meterial Heat Treat Finish DFARS RoHS
Quick-Acting Knobs Sintered Iron Yes Yes Yes Yes

Parts Specification

Thread Size (Inch)A (Inch)B Diameter (Inch)C (Inch)D (Inch)F Diameter (Inch)
1/2-13"2-1/2"1"1-1/8"9/16"33/64"
