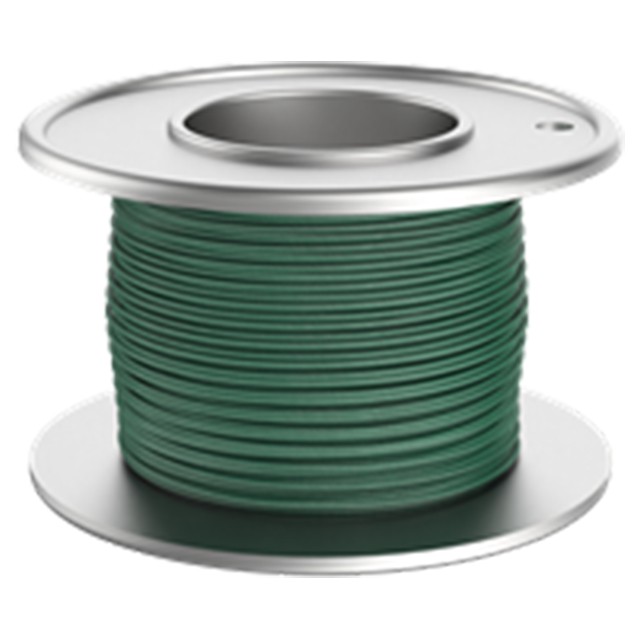

Carr Lane CL-4-SC-1000FT | 4 Size x 1000 Ft Length Cable

$1,366.19
Ships:
From Manufacturer
Brand:
Carr Lane
Cable Size:
4
Ships:
From Manufacturer
SKU:
50012456
Weight:
37.86 LBS
Shipping:
Free Shipping

Cable

High-strength stranded wire cable with a green nylon coating. Choice of four cable diameters. Cable size #1 is made of stainless Steel. Sizes #2, #3, and #4 are made of galvanized Steel, Specify the length of cut cable pieces in inches to one decimal place, from 3.0" minimum to 599.9" maximum. Cut pieces are held to +/-1/4" tolerance up to 24" long.

Application Information

Cable Assemblies are ideal for attaching removable alignment pins and other tooling components.

Material

Steel:

Galvanized Steel stranded wire, nylon coated. DFARS and RoHS compliant.


Stainless Steel:

Stainless Steel stranded wire, nylon coated. RoHS compliant.

Parts Specification

Material (Inch)Cable Size (Inch)Length (Inch)D Diameter After Coating (Inch)D Diameter Before Coating (Inch)Cable Construction (Inch)Breaking Strength (lbs)
Stainless Steel"4"1000 Feet"0.187"0.125"7 x 19"800 lbs
