Carr Lane CL-4-SCA | 3/8-16" Thread Size Slotted-Heel Clamp Strap

$69.38
Ships:
From Manufacturer
Brand:
Carr Lane
Diameter:
1-1/8"
Ships:
From Manufacturer
SKU:
50012461
Weight:
1.60 LBS
Shipping:
Calculated at Checkout

Slotted-Heel Clamp Strap

Heavy-duty Steel version of the Slotted-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a slot underneath to slide straight back for clear loading. An indentation at the rear of each side provides a secure finger grip for retracting the clamp. Made in USA.

Application Information

Slotted-Heel Clamp Straps have a slot underneath to slide straight back for clear loading.

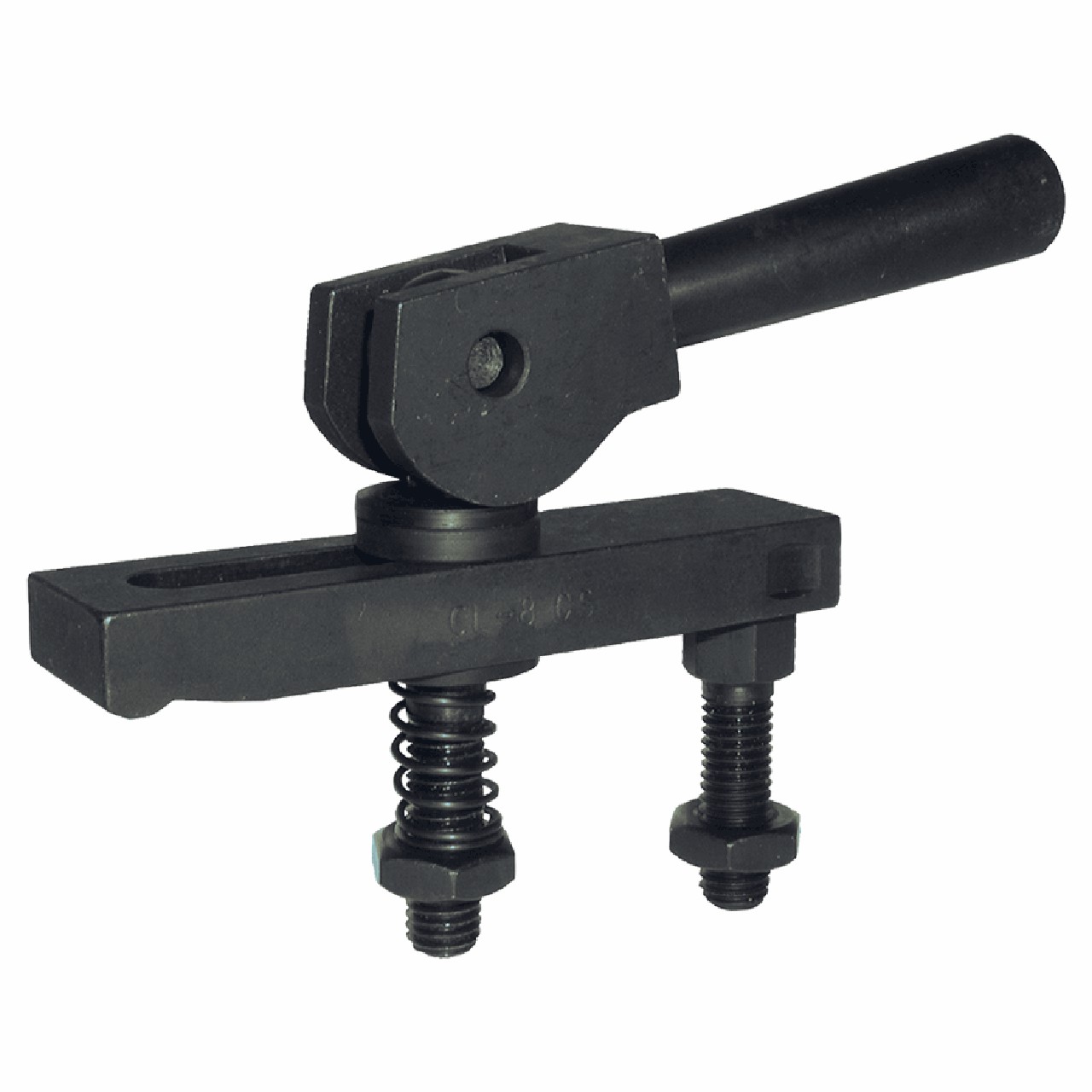

Assembly with Cam Handle and Spherical Washer

This clamp assembly includes a Slotted-Heel Clamp Strap plus the following Items:

  • Cam Handle
  • Spherical Washer
  • Eye Bolt
  • Clevis Pin
  • Clamp Spring
  • Flat Washer
  • Jam Nut
  • Clamp Rest

Material

MaterialHeat TreatFinishDFARSRoHS
1018 SteelCarburized HardenedBlack OxideYesYes

Parts Specification

Thread Size (Inch)AB (Inch)C (Inch)E (Inch)
3/8-16"51-1/8"1/2"2-9/32"

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
