Stud leveling Feet

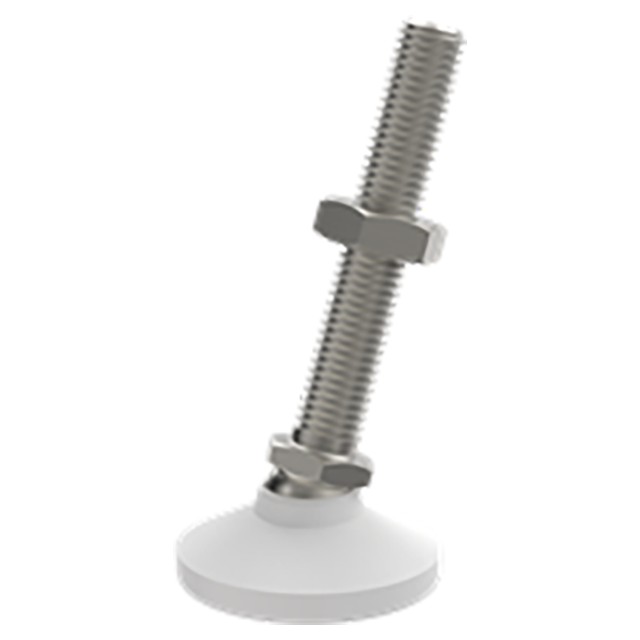

High-quality, heavy-duty leveling foot with a large-diameter pad and integral stud. Stud and swivel ball are one solid piece. Large stainless-steel swivel ball provides extra corrosion resistance with a 20° total swivel angle. The Delrin pad prevents marring, but has a lower load capacity than a stainless-steel pad. Made in USA.
Application Information
A Stud Leveling Foot can be used as a clamp rest for a Tapped-Heel Clamp Strap
Design Considerations & Safety Precautions
Rated load capacity represents safe static load with the standard stud at maximum extension, with its threads fully engaged for one stud diameter. Safety factor = 2:1. Load capacity will drop significantly with longer studs.
Material
| Item | Material | Heat Treat | Finish |
| Body | 300-Series Stainless Steel | - | - |
| Pad | White Delrin 500 | - | - |
Parts Specification
| A Thread | B (Inch) | C Diameter (Inch) | D (Inch) | E (Inch) | F (Inch) | Load Rating (lbs) |
| 1/4-20" | 1/2" | 1" | 5/32 | 45/64 | 2-1/2" | 200 lbs |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
