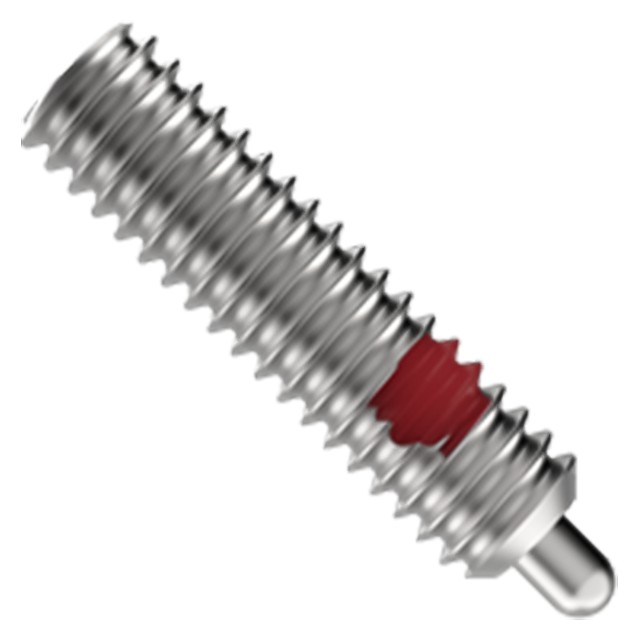

Spring Plungers-Stainless Steel
This standard-length, threaded type has a long stroke and long plunger bearing length for smooth operation. The stainless steel body and plunger nose for extra corrosion resistance. Made in USA.
Install and/or adjust from either end. When using the slot at the plunger end to install, use a Plunger Wrench instead of a screwdriver to avoid over-compressing the spring. A thread-locking element holds the unit securely in place after installation.
Application Information
Spring plungers can be used to lift parts slightly after machining, for easier unloading.
Internal View
Nose Extended
Nose Retracted
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body and Plunger Nose | 300-Series Stainless Steel | - | - | Yes | Yes |
| Spring | 302 Stainless | - | - | Yes | Yes |
Parts Specification
| A Thread | Initial End Force (lbs) | Final End Force (lbs) | B (inch) | C (inch) | D Diameter (inch) |
| 1/4-20 | 1 lbs. | 4 lbs. | 1" | 3/16" | 0.119" |
