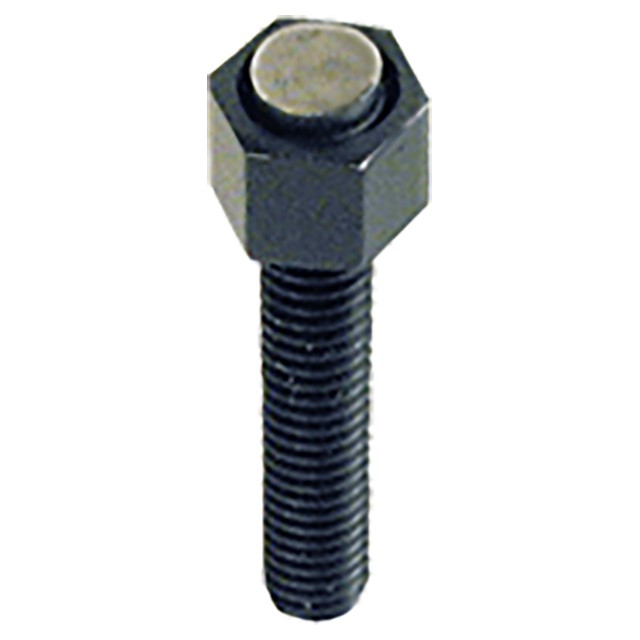

Carr Lane CL-410-GBF | 1/4-20" Thread Gripper Swivel Contact Bolt

$36.36
Brand:
Carr Lane
Thread:
1/4-20"
SKU:
50021684
UPC:
Weight:
0.02 LBS
Shipping:
Calculated at Checkout

Gripper Swivel Contact Bolts-Mini

Mini-size threaded contact bolt with a built-in swivel ball held by a retaining ring. The flat gripper face is machined directly on the swivel ball. A positive stop prevents the ball from swiveling too far. Can be used as a contact bolt, or as a support. Made in USA.

Material

ItemMaterialHeat TreatFinishDFARSRoHS
Body and Gripper ScrewSteelCarburized-HardenedBlack OxideYesYes
Flat Steel Swivel BallSteel, Hardened-Black OxideYesYes
O-ringRuber--YesYes

Parts Specification

A Thread (Inch)B (Inch)C Diameter (Inch)D (Inch)E (Inch)F Diameter (Inch)G
1/4"-20"1"1/4"3/8"7/16"9/3214°
