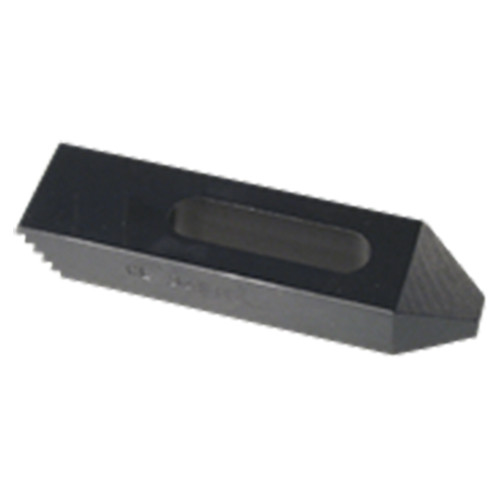

Step Clamps
have rear serrations that match with all of Step Blocks. These serrations are specially designed for excellent load bearing.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
Parts Specification
| Stud Size | A | B | C | D | E | F | G | H | J |
| 1/2 or M12 | 6 | 7/8 | 1-1/4 | 3/4 | 1-5/32 | 2-1/8 | 9/16 | 7/16 | 5/16 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Size:
M12
