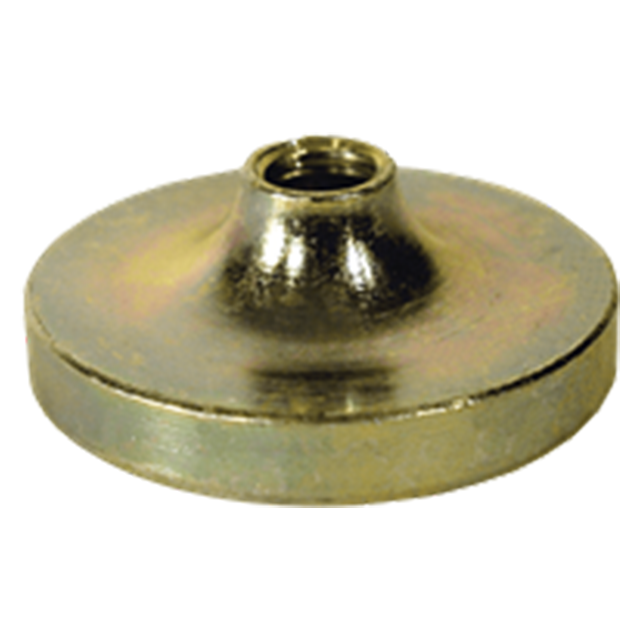

Extra-Large Feet-Type E
Type E swivel feet have an extremely large contact area. Made in USA.
Patented Design
Feet for Swivel Screws are an important part of the patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental backout during use.
Material
| Steel, Black Oxide Finish | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| 1215 Steel | Yes | Black Oxide | Yes | Yes | |
Parts Specification
| Fits Body Thread Sizes | B Diameter (Inch) | E (Inch) | G (Inch) | H (Inch) |
| 1/2-13" and M12 | 1.50" | 1/4" | 0.26" | 0.56" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter:
1.5000"
Thread Size:
1/2-13"
Ships:
From Manufacturer
