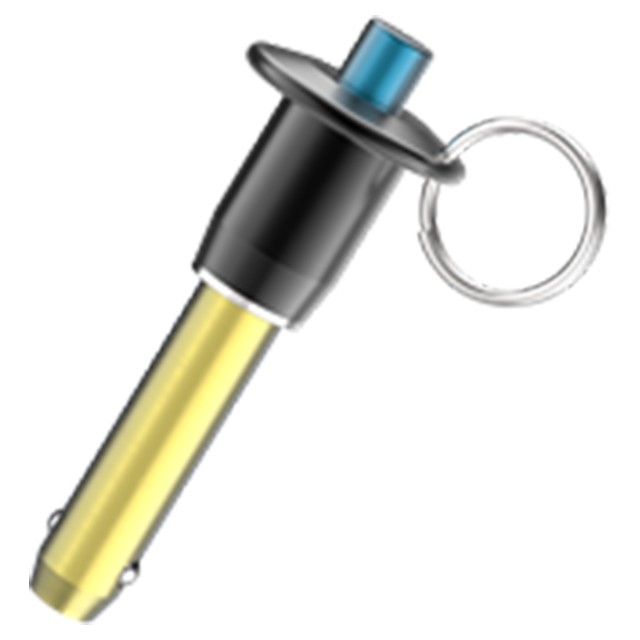

Button Handle
Ball Lock Pins are high-strength, quick-release alignment pins with a precision ground shank. These standard single-acting Ball Lock Pins are positive locking until released by pushing the button, which moves the center spindle forward to allow the locking balls to retract. The button-handle version is one of four handle styles. Made in USA.
Technical Information
Ball Lock Pins are positive locking until released by pushing the button, which moves the center spindle forward to allow the balls to retract.
Optional 4 Ball
Pins are optionally available with four balls instead of two, for more-distributed ball-pullout force. To order, add "-4BALL" to the part number.
Optional Cable
To order pins with a standard cable assembly attached, add "-C" to the part number. For an optional 10" nylon lanyard, add "-NL" to the part number.
Material
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Shank | 4130 Steel | Rc 36-40 | Zinc Plated Yellow Chromate | Yes | Yes |
| Spindle | 17-4PH Stainless Steel | - | Passivated | Yes | Yes |
| Handle | Aluminum Alloy | - | Black Finish | Yes | Yes |
| Button | Aluminum Alloy | - | Anodized | Yes | Yes |
| Collar | 300-Series Stainless Steel | - | Passivated | Yes | Yes |
| Spring and Ring | 17-7PH or 302 Stainless Steel | - | N/A | Yes | Yes |
| Balls | 440C Stainless Steel | - | N/A | Yes | Yes |
Parts Specification
| A Diameter Nominal (Inch) | A Diameter Actual (Inch) | Grip Length (Inch) | B (Inch) | C (Inch) | D Diameter (Inch) | E (Inch) | G Diameter (Inch) | M (Inch) | P Diameter (Inch) |
| 5/16" | 0.3110/0.3095" | 1.25" | 0.375" | 0.315" | 0.22" | 1.26" | 0.47" | 0.89" | 0.82" |
